RILO-E056DAFSW840BU0150 | 0838188AQ
Product Description
Order Information
| Item number | 0838188AQ |
| GTIN | 4071222172703 |
| Delivery commitment | on demand |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 564 mm |
| Dimension B | 20 mm |
| Dimension H | 74 mm |
| Dimension A1 | 500 mm |
| Dimension L1 | 560 mm |
| Net weight | 1.710 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | Socket |
| Number of poles | 5 |
| Conductor cross-section | 0.5–4 mm² |
| Adjustability | static |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 10.6 W |
| Protection class | I |
| Overvoltage protection | 10 kV |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

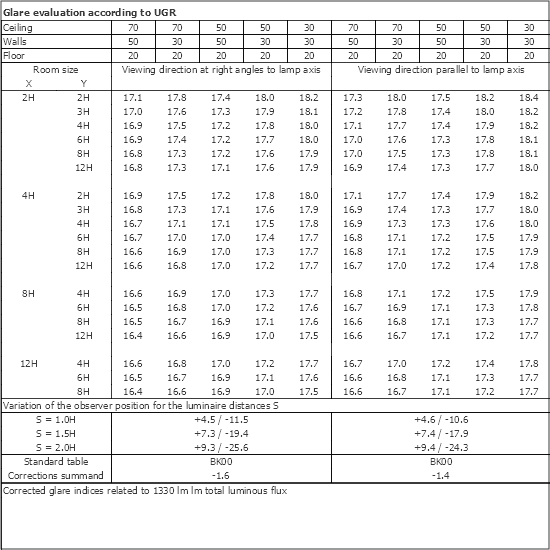

| UGR class | ≤ 19 |
| Rated luminous flux | 1330 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 80.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Order Information
| Item number | 0838188AQ |
| GTIN | 4071222172703 |
General
| Product category | Ceiling light |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension L | 564 mm |
| Dimension B | 20 mm |
| Dimension H | 74 mm |
| Dimension A1 | 500 mm |
| Dimension L1 | 560 mm |
| Net weight | 1.710 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | Socket |
| Number of poles | 5 |
| Conductor cross-section | 0.5–4 mm² |
| Adjustability | static |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 10.6 W |
| Protection class | I |
| Overvoltage protection | 10 kV |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 1330 lm |
| Luminaire efficiency | 125 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 80.000 h |
| Rated life L80B10 (tq = 25 °C) | 80.000 h |
Download Center
Light distribution curve
Approvals:
Attributes:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 m
