RLS2-LED NDWS-2200T865 / 0321488
Product Description
High-bay spotlight from the RLS-LED product family. Optical control via , beam pattern symmetric, , light emission . Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 22300 lm in light colour 865, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of , , protection rating IP65. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Order Information
| Item number | 0321488 |
| GTIN | 4029299484120 |
General
| Product category | High-bay spotlight |
| HACCP certified | Yes |
Dimensions
| Dimension H | 500 mm |
| Dimension D | 330 mm |
| Dimension D2 | 330 mm |
| Net weight | 9.200 kg |
Mounting
| Mounting type | Pendant |
Housing
| Protection class | IP65 |
| Glow-wire test | 650 °C |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 170.0 W |
| Protection class | I |
Lighting technology
| Light emission | |
| Light distribution | symmetric |
| Rated luminous flux | 22300 lm |
| Luminaire efficiency | 131 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0202438 - RLS2-LED-VSK PC | Panel attachment, clear PC, white fixing ring |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0200906 -
SLKG KETTEN-S-GLIED
|
S chain link, max.20kg, per unit |
|
|
0202426 -
RL-SPO 3.0
|
Wire pendant for RL.1/RL.2 3.0m with loop, 1 pc |
|
|
|
0202425 -
RL-SPO 1.5
|
Wire pendant for RL.1/RL.2 1.5m with loop, 1 pc |
|
|
0210958 -
UKNS 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
| 0202428 - RL-DB | Ceiling fixing for RL.1/RL.2 |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0202427 -
RL-HK
|
Chain fixing for RL.1/RL.2 , 1 pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
High-bay spotlight from the RLS-LED product family. Optical control via , beam pattern symmetric, , light emission . Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 22300 lm in light colour 865, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of , , protection rating IP65. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
Order Information
| Item number | 0321488 |
| GTIN | 4029299484120 |
General
| Product category | High-bay spotlight |
| HACCP certified | Yes |
Dimensions
| Dimension H | 500 mm |
| Dimension D | 330 mm |
| Dimension D2 | 330 mm |
| Net weight | 9.200 kg |
Mounting
| Mounting type | Pendant |
Housing
| Protection class | IP65 |
| Glow-wire test | 650 °C |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 50–60 Hz |
| Rated power | 170.0 W |
| Protection class | I |
Lighting technology
| Light distribution | symmetric |
| Rated luminous flux | 22300 lm |
| Luminaire efficiency | 131 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center

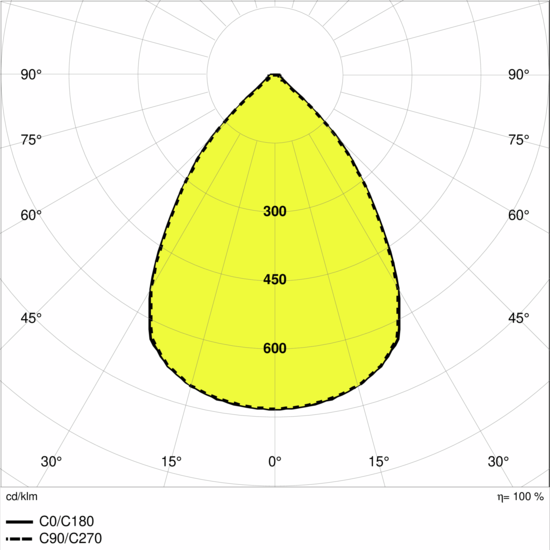

Light distribution curve
