ROBUST DAWS865B2000 / 0637900
Product Description
High-bay spotlight from the ROBUST product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 19520 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP66. Ceiling-mounted installation with corresponding accessories. Pendant mounting (chain or rope) with corresponding fixing kits, swing hooks (4 pieces) included. Mounting rail installation with corresponding accessories. Ball resistant mounting only with appropriately labelled accessories. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on harmful gas resistance: A special coating on the LEDs makes the product more resistant to harmful gases.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales, storage and administrative areas for packaged food.
Order Information
| Item number | 0637900 |
| GTIN | 4029299575385 |
General
| Product category | High-bay spotlight |
| Range of application | Industry | Sports and multipurpose halls | Food |
| Range of application HACCP | Packaged food |
Dimensions
| Dimension L | 415 mm |
| Dimension B | 415 mm |
| Dimension H | 131 mm |
| Net weight | 7.200 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP66 |
| Impact resistance | IK09 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -40–38 °C |
| Housing material | Aluminium |
| Cover material | Glass (ESG) |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 125.0 W |
| Faktor Verlustleistung Betriebsgerät | keine R-TUBE |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

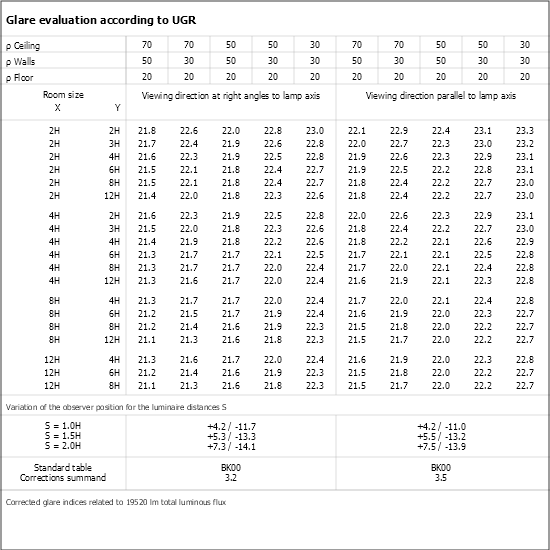

| UGR class | ≤ 22 |
| Rated luminous flux | 19520 lm |
| Luminaire efficiency | 156 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 79.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Housings, Covers, and Design
| Item number - Designation | Product Description | Download | Wishlist |
0205791SI -
VLTE SI TRAGSCHIENEN ENDDECKEL
|
End cap for trunking, silver, plastic, 1 piece |
|
|
0205791 -
VLTE TRAGSCHIENEN ENDDECKEL
|
End cap for trunking, white, plastic, 1 piece |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0206548 -
VLTVA TRAGSCHIENENVERBINDER
|
External trunking connector, for IP20 |
|
|
1205790 -
VLTV TRAGSCHIENENVERBINDER
|
Trunking connectors IP20 and IP54, 1 piece |
|
|
0206548AG -
VLTVA TRAGSCHIENENV.-RAL 9006
|
External trunking connector, IP20, silver |
|
|
0205224 -
VLTHDB AUFHÄNGER
|
Ceiling fixture with cross screw for securing, maximum 20 kg, 1 piece |
|
|
0205222 -
VLTHDS AUFHÄNGER + HAKEN KURZ
|
Hanger for chain suspension, angled mounting, maximum 20 kg, 1 piece |
|
|
0205761 -
VLTLI
|
Internal cable clips, 10 pieces |
|
|
0207867 -
TRAS-HA
|
Chain hanger, adjustment nut, 1 piece, maximum 20 kg |
|
|
0205887 -
VLBP
|
Plate with eyelet for ceiling fixture, maximum load 20 kg, 1 piece |
|
|
0207868 -
TRAS-HD
|
Hanger with a diameter of 6.0 mm for ceiling mounting, 1 piece |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, diameter 2 mm, length 3 m, 1 piece, maximum load 45 kg |
|
|
1500006 -
VLTO 583
|
Trunking, 3-length, L=4611 mm, without through wiring, white |
|
|
|
1500006SI -
VLTO 583 SI
|
Trunking, 3-length, L=4611 mm, without through wiring, silver |
|
|
|
1500005 -
VLTO 582
|
Trunking, 2-length, L=3074 mm, without through wiring, white |
|
|
0207852 -
TRAS 4500
|
Trunking, length 4.5 m, galvanised steel, weight 5.9 kg |
|
|
|
0207851 -
TRAS 3000
|
Trunking, length 3 m, galvanised steel, weight 3.9 kg |
|
|
|
1500005SI -
VLTO 582 SI
|
Trunking, 2-length, L=3074 mm, without through wiring, silver |
|
|
|
1500004 -
VLTO 581
|
Trunking, 1-length, L=1537 mm, without through wiring, white |
|
|
0206551AP -
VLBKK-AP
|
Safety clip for VLBK, natural, 1 piece |
|
|
0205760 -
VLTLA
|
External cable holder, maximum 2 x Ø 13 mm + 1 x Ø 7 mm, 1 piece |
|
|
|
1500004SI -
VLTO 581 SI
|
Trunking, 1-length, L=1537 mm, without through wiring, silver |
|
|
|
1500003 -
VLTO 363
|
Trunking, 3-length, L=3711 mm, without through wiring, white |
|
|
|
1500002SI -
VLTO 362 SI
|
Trunking, 2-length, L=2474 mm, without through wiring, silver |
|
|
0217884 -
ZBS-D-HT ROBUST T>25°
|
Ceiling fixture for ROBUST, height = 300 mm, for high-temperature areas |
|
|
|
1500001 -
VLTO 361
|
Trunking, 1-length, L=1237 mm, without through wiring, white |
|
|
0207860 -
TRAS-V
|
Trunking connector for TRAS, 1 piece |
|
|
|
1500001SI -
VLTO 361 SI
|
Trunking, 1-length, L=1237 mm, without through wiring, silver |
|
|
|
1500002 -
VLTO 362
|
Trunking, 2-length, L=2474 mm, without through wiring, white |
|
|
0217885 -
ZBS-VLT ROBUST
|
ROBUST light fixture mount for VLT, set |
|
|
0217886 -
ZBS-TRAS ROBUST
|
ROBUST light fixture mount for TRAS, set |
|
|
0205888 -
VLKH
|
Snap hook, maximum load 20 kg, 1 piece |
|
|
0200223 -
TRA 002 M5X20
|
Light fixture hanger, swing hook M5x20, galvanised steel |
|
|
0208347 -
VLSPSO-KH
|
Tension clamp with eyelets and carabiner, adjustment range 50 mm, maximum load 20 kg, 1 piece |
|
|
| 0209463 - ZBS-WHS-ROBUST-WS | ROBUST adjustable wall bracket in white |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Link chain to DIN 5686, diameter 3.1 mm, galvanised, maximum load 20 kg, length 1 m |
|
|
0217883 -
ZBS-K ROBUST
|
Chain fasteners, chains or ropes must be ordered separately |
|
|
0217882 -
ZBS-D ROBUST
|
Ceiling fixture for ROBUST, height = 30 mm |
|
|
Mounting and Fastening (ball resistant)
| Item number - Designation | Product Description | Download | Wishlist |
0207083 -
TRAS-AB
|
Mounting plate for ball resistant mounting of TRAS-A |
|
|
0207853 -
TRAS-A 1500
|
TRAS cover, L = 1.5 m, galvanised, ball resistant with TRAS-AB |
|
|
