RUFO2 460NDWS840H0350-RS | 0420845//396
Product Description
Ceiling and wall luminaire of the RUFO2 product family. Optical control by Opal cover, beam pattern symmetric, diffuse beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3800 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Cover made of PMMA opal. With electronic electrical component On/Off. Replacement by specialist possible. Nominal voltage 220 - 240 V AC 50 - 60 Hz. With light and motion detector. Detection range crosswise Ø 6 m, detection field 28 m².
Order Information
| Item number | 0420845//396 |
| GTIN | 4029299924169 |
| Delivery commitment | on demand |
General
| Product category | Ceiling and wall luminaire |
| Range of application | Education | Industry | Office |
| Sensor | Movement | Light |
| Guarantee | 5 years |
Dimensions
| Dimension H | 120 mm |
| Dimension D | 464 mm |
| Dimension A1 | 360 mm |
| Dimension A2 | 312 mm |
| Dimension D1 | 434 mm |
| Net weight | 1.850 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling | Wall |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK02 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 26.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 3800 lm |
| Luminaire efficiency | 146 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 6 m |
| Frontal detection range | Ø 6 m |
| Angle of coverage | 360° |
| Detection field | 28 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 6 m |
| Brightness setpoint | 2 - 50 lx |
| Number of luminaires (master/slave) | 4 |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Spare parts
| Item number - Designation | Product Description | Download | Wishlist |
0204572 -
WRUFO2 460 H
|
Replacement diffuser for RUFO2 460 H made of PMMA |
|
|
Ceiling and wall luminaire of the RUFO2 product family. Optical control by Opal cover, beam pattern symmetric, diffuse beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3800 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Cover made of PMMA opal. With electronic electrical component On/Off. Replacement by specialist possible. Nominal voltage 220 - 240 V AC 50 - 60 Hz. With light and motion detector. Detection range crosswise Ø 6 m, detection field 28 m².
Order Information
| Item number | 0420845//396 |
| GTIN | 4029299924169 |
General
| Product category | Ceiling and wall luminaire |
| Range of application | Education | Industry | Office |
| Sensor | Movement | Light |
| Guarantee | 5 years |
Dimensions
| Dimension H | 120 mm |
| Dimension D | 464 mm |
| Dimension A1 | 360 mm |
| Dimension A2 | 312 mm |
| Dimension D1 | 434 mm |
| Net weight | 1.850 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling | Wall |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK02 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 26.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | diffuse beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 3800 lm |
| Luminaire efficiency | 146 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Sensor technology
| Transverse detection range | Ø 6 m |
| Frontal detection range | Ø 6 m |
| Angle of coverage | 360° |
| Detection field | 28 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 6 m |
| Brightness setpoint | 2 - 50 lx |
| Number of luminaires (master/slave) | 4 |
Download Center

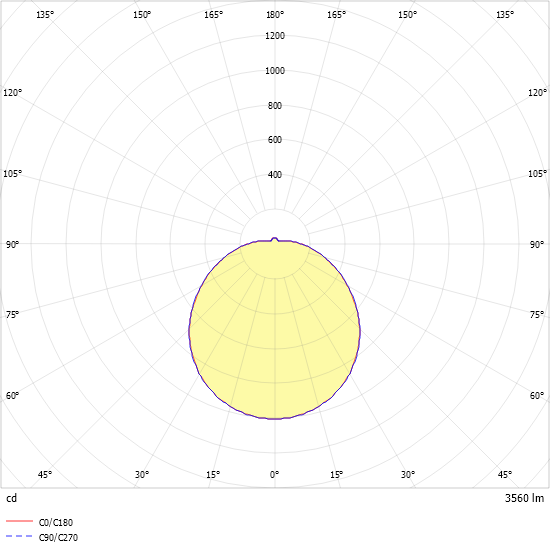

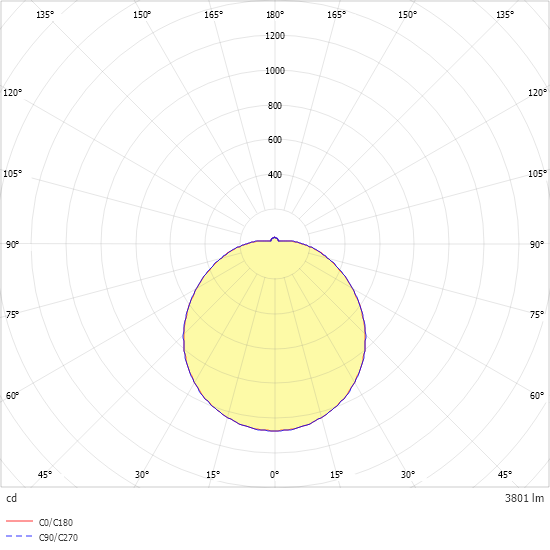

Light distribution curve
