SALI-GL150-DAWS840TB1500 / 1562025
Product Description
Light strip from the SALI product family. Optical control via Lens, beam pattern symmetric, medium beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 15330 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP21. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 1562025 |
| GTIN | 4029299478266 |
General
| Product category | Light strip |
| Range of application | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1504 mm |
| Dimension B | 67 mm |
| Dimension H | 61 mm |
| Dimension A1 | 1200 mm |
| Dimension AE | 1200 mm |
| Net weight | 3.085 kg |
Mounting
| Mounting type | Pendant | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP21 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–32 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 85.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | deep-wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 15330 lm |
| Luminaire efficiency | 180 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 90.000 h |
| Rated life L80B10 (tq = 25 °C) | 90.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0205792 -
VLTHA TRAGSCHIENENAUFHÄNGER
|
Chain suspension hanger adjustable nut, 1 pc |
|
|
0205685 -
VLTHB TRAGSCHIENENAUFHÄNGER
|
Chain suspension hanger, quick adjustment, 1 pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0205794 -
VLTHD TRAGSCHIENENAUFHÄNGER
|
Hanger for ceiling mounting, max. 20kg, 1 pc |
|
|
0209167 -
VLTHD-H01 TRAGSCH.AUFHÄNGER
|
Hanger for ceiling mounting H = 1 mm, uncoated, max. 20 kg, one unit |
|
|
0205921 -
VLTHSD AUFHÄNGER + DECKENBEF.
|
Hanger with wire 1.5m + ceiling fixing, 1 pc. |
|
|
0205760 -
VLTLA
|
Ext. cable retainer max. 2 x dia.13mm + 1 x dia.7mm, 1 pc |
|
|
0208310 -
VLTLIK
|
Internal cable retainer, plastic, 10 units |
|
|
| 0205565 - ZADV SALI...150-5X1.5 DV | Sheathed cable 5x1.5mm² through wiring SALI external, max. 10A |
|
|
| 0205566 - ZADV SALI...150-3X1.5 DV | Sheathed cable 3x1.5mm² through wiring SALI external, max. 10A |
|
|
0205922 -
VLTHS AUFHÄNGER MIT OESE
|
Hanger with wire 1.5m + ring loop, 1 pc. |
|
|
Light strip from the SALI product family. Optical control via Lens, beam pattern symmetric, medium beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 15330 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP21. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 1562025 |
| GTIN | 4029299478266 |
General
| Product category | Light strip |
| Range of application | Industry | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1504 mm |
| Dimension B | 67 mm |
| Dimension H | 61 mm |
| Dimension A1 | 1200 mm |
| Dimension AE | 1200 mm |
| Net weight | 3.085 kg |
Mounting
| Mounting type | Pendant | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP21 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–32 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 85.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | deep-wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 15330 lm |
| Luminaire efficiency | 180 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 90.000 h |
| Rated life L80B10 (tq = 25 °C) | 90.000 h |
Download Center

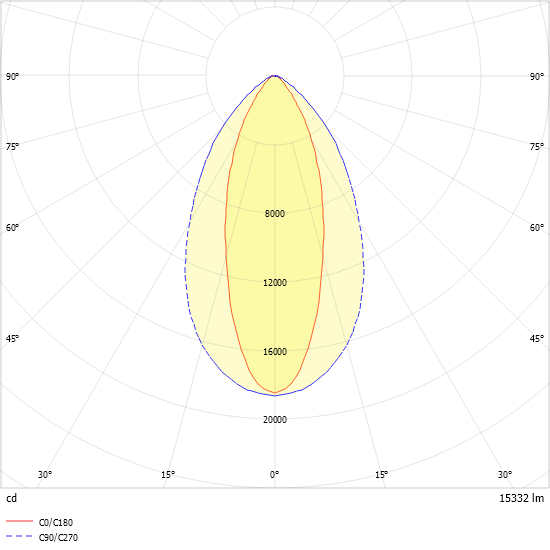

Light distribution curve
