SARA220 DAWS830840OS210 / 0332094
Product Description
Downlight from the SARA product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2100 lm in light colour 830/840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, traffic white, similar to RAL 9016, protection rating IP40. Recessed downlighter with variable fixing clip for ceiling openings from 65 to 185 mm. For ceiling thicknesses from 5-25 mm. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0332094 |
| GTIN | 4029299574029 |
General
| Product category | Downlight |
| Range of application | Office |
| Guarantee | 5 years |
Dimensions
| Dimension H | 22 mm |
| Dimension D | 217 mm |
| Dimension DE max | 185 mm |
| Dimension DE min | 65 mm |
| Dimension HE | 60 mm |
| Net weight | 0.613 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.75–1.5 mm² |
Housing
| System dimension | D 220 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 17.5 W |
| Protection class | II |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

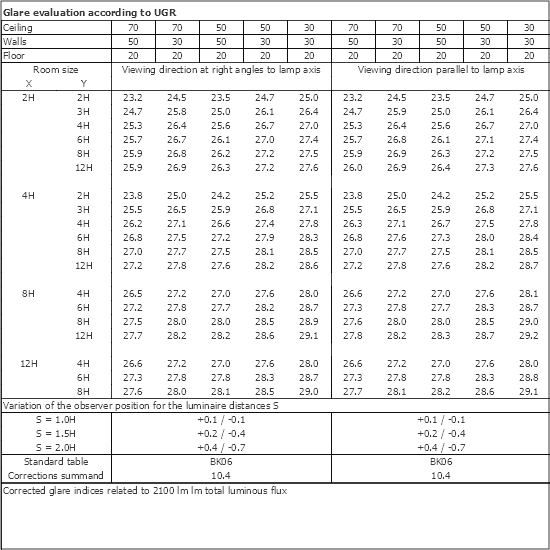

| UGR class | > 25 |
| Rated luminous flux | 2100 lm |
| Luminaire efficiency | 120 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209464 -
DR-SARA220 ES
|
Stainless steel decorative ring |
|
|
0209465 -
DR-SARA220 SW
|
Stainless steel decorative ring, black powder coated |
|
|
