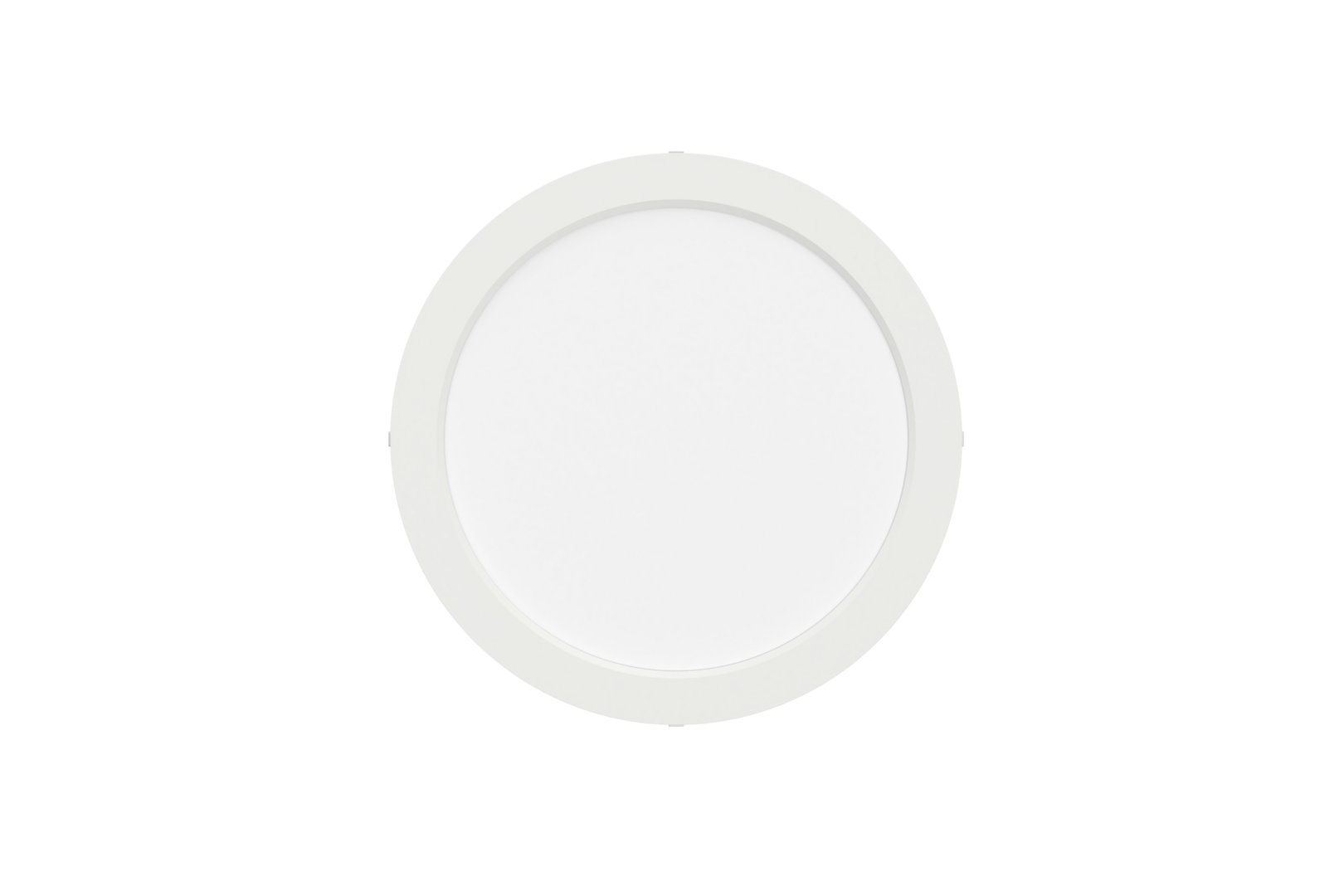

SARA220 NDWS830840OS220 / 0322094
Product Description
Downlight from the SARA product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2170 lm in light colour 830/840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 1240 - 2170 lm. Housing made of Plastic, traffic white, similar to RAL 9016, protection rating IP40. Recessed and surface-mounted downlight with variable fixing clip for ceiling openings from 65 to 185 mm. For ceiling thicknesses from 5-25 mm. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0322094 |
| GTIN | 4029299573985 |
General
| Product category | Downlight |
| Range of application | Education |
| Guarantee | 5 years |
Dimensions
| Dimension H | 22 mm |
| Dimension D | 217 mm |
| Dimension DE max | 185 mm |
| Dimension DE min | 65 mm |
| Dimension HE | 60 mm |
| Net weight | 0.413 kg |
Mounting
| Mounting type | Installation | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.75–1.5 mm² |
Housing
| System dimension | D 220 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 18.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

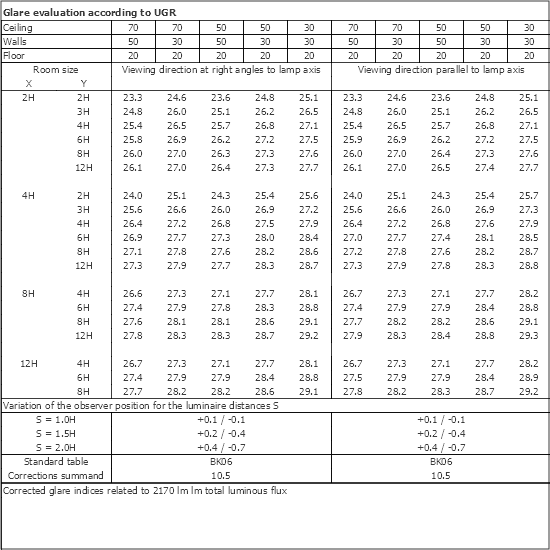

| UGR class | > 25 |
| Rated luminous flux | 2170 lm |
| Maximum rated luminous flux | 1240 - 2170 lm |
| Luminaire efficiency | 121 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0209464 -
DR-SARA220 ES
|
Stainless steel decorative ring |
|
|
0209465 -
DR-SARA220 SW
|
Stainless steel decorative ring, black powder coated |
|
|
Downlight from the SARA product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2170 lm in light colour 830/840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 1240 - 2170 lm. Housing made of Plastic, traffic white, similar to RAL 9016, protection rating IP40. Recessed and surface-mounted downlight with variable fixing clip for ceiling openings from 65 to 185 mm. For ceiling thicknesses from 5-25 mm. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0322094 |
| GTIN | 4029299573985 |
General
| Product category | Downlight |
| Range of application | Education |
| Guarantee | 5 years |
Dimensions
| Dimension H | 22 mm |
| Dimension D | 217 mm |
| Dimension DE max | 185 mm |
| Dimension DE min | 65 mm |
| Dimension HE | 60 mm |
| Net weight | 0.413 kg |
Mounting
| Mounting type | Installation | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.75–1.5 mm² |
Housing
| System dimension | D 220 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Plastic |
| Cover material | PMMA opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 18.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | > 25 |
| Rated luminous flux | 2170 lm |
| Maximum rated luminous flux | 1240 - 2170 lm |
| Luminaire efficiency | 121 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG0 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

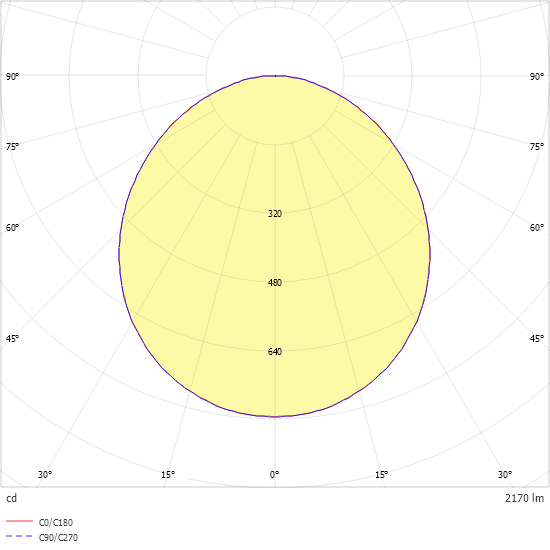

Light distribution curve
