SHL-L 480/3360-840 PSB / 0650613
Product Description
Ceiling light from the SHL product family. Optical control via Cover microprismatic, beam pattern symmetric, wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 27780 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP40. Pendant and ceiling mounting of the luminaires with corresponding fixing kits. Time-saving click mounting of the luminaires on the TRAS trunking system without opening the luminaire. Ball-resistant pendant mounting of 1- and 2-lamp luminaires on one trunking, 3- and 4-lamp luminaires on two parallel trunkings.With the SHL-DB accessory, 0227922, the luminaires can be mounted directly on the ceiling or mounting surface without trunking. The luminaire must be opened for this.continuous mounting via external connector SHL-LV, knock-out opening D 20 at the front for through wiring. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
SHL. 180, 280, 424: all lamps are wired to L1. (180 with 1 device, 280 with 2 devices). SHL. 380: central lamp wired to L1, outer lamps to L2. (3 devices). SHL. 480: both central lamps wired to L1, outer lamps to L2. (4 devices). DALI versions: separate terminal for control line, see dimensional drawings. Emergency lighting versions: separate terminal for backup mains or charging phase. Other wiring arrangements are available on request..
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
The ball resistant rating certifies the high level of robustness of these models, which is also a significant benefit in industrial luminaires.
Order Information
| Item number | 0650613 |
| GTIN | 4029299489729 |
General
| Product category | Ceiling light |
| Range of application | Industry | Sports and multipurpose halls |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 466 mm |
| Dimension H | 80 mm |
| Dimension A1 | 1350 mm |
| Dimension A2 | 216 mm |
| Dimension AB | 150 mm |
| Dimension K | 100 mm |
| Net weight | 16.250 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–38 °C |
| Housing material | Steel |
| Cover material | PMMA structured |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 244.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover microprismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

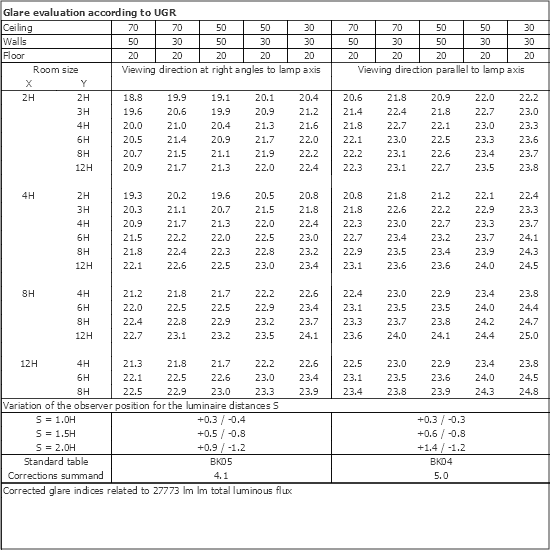

| UGR class | ≤ 25 |
| Rated luminous flux | 27780 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 65.000 h |
| Rated life L80B10 (tq = 25 °C) | 55.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
