SHL-L 180/620-840 SM-DA / 0660099
Product Description
Ceiling light from the SHL product family. Optical control via Louvre, beam pattern symmetric, extremely wide beam, light emission direct. Lamps L-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 6260 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP40. Pendant and ceiling mounting of the luminaires with corresponding fixing kits. Time-saving click mounting of the luminaires on the TRAS trunking system without opening the luminaire. Ball-resistant pendant mounting of 1- and 2-lamp luminaires on one trunking, 3- and 4-lamp luminaires on two parallel trunkings.With the SHL-DB accessory, 0227922, the luminaires can be mounted directly on the ceiling or mounting surface without trunking. The luminaire must be opened for this.continuous mounting via external connector SHL-LV, knock-out opening D 20 at the front for through wiring. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
SHL. 180, 280, 424: all lamps are wired to L1. (180 with 1 device, 280 with 2 devices). SHL. 380: central lamp wired to L1, outer lamps to L2. (3 devices). SHL. 480: both central lamps wired to L1, outer lamps to L2. (4 devices). DALI versions: separate terminal for control line, see dimensional drawings. Emergency lighting versions: separate terminal for backup mains or charging phase. Other wiring arrangements are available on request..
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
The ball resistant rating certifies the high level of robustness of these models, which is also a significant benefit in industrial luminaires.
Order Information
| Item number | 0660099 |
| GTIN | 4029299460483 |
General
| Product category | Ceiling light |
| Range of application | Industry | Sports and multipurpose halls |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 200 mm |
| Dimension H | 80 mm |
| Dimension A1 | 1350 mm |
| Dimension A2 | |
| Dimension AB | 150 mm |
| Dimension K | |
| Net weight | 11.000 kg |
Mounting
| Mounting type | Attachment | Pendant |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–43 °C |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

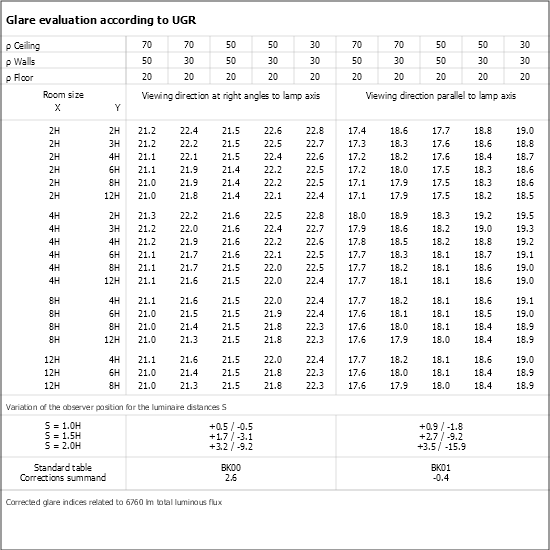

| UGR class | ≤ 22 |
| Rated luminous flux | 6260 lm |
| Luminaire efficiency | 130 lm/W |
Light source
| Lamp | L-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 90.000 h |
| Rated life L80B10 (tq = 25 °C) | 75.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0207945 -
SHL-LV 1-2..
|
Luminaire connector for SHL-L 180/280, SHL2-AE.., 1pc |
|
|
|
0207946 -
SHL-LV 3.. LB
|
Luminaire connector for SHL-L 380, SHL2-AM..., 1pc |
|
|
|
0208389 -
SHL-LV 4.. LB
|
Luminaire connector for SHL-L 480, 1 pc. |
|
|
0203626 -
ZGH GLASHEBER
|
Rubber suction device for removal of the protective glass |
|
|
0207852 -
TRAS 4500
|
Galvanized steel trunking, L=4.5m, weight 5.9 kg |
|
|
|
0207851 -
TRAS 3000
|
Galvanized steel trunking, L=3.0m, weight 3.9 kg |
|
|
0207860 -
TRAS-V
|
Trunking connector for TRAS, 1pc |
|
|
0207980 -
ZKA-SHL
|
Clamp cover for SHL, 1pc |
|
|
0209083 -
ZKA-SHL-DB
|
1x connector block cover for SHL-DB |
|
|
0227922 -
SHL-DB
|
Ceiling fixing kit for SHL, ceiling distance 5mm or 20mm |
|
|
0200228 -
TRA 002 SHL M5X20
|
Luminaire hanger SHL, swing hook M5x20, galv. steel, 1 pc |
|
|
0207868 -
TRAS-HD
|
Hanger with 6.0 dia. for ceiling mounting, 1 pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0200999 -
TRA 216/224-SHL 3../4..
|
Cross bar for SHL 3.. + 4.., fixing distance 216,224mm |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0208347 -
VLSPSO-KH
|
Turnbuckle with eyelets + carabiner, adjustment 50 mm, maximum 20 kg, 1 piece |
|
|
0207867 -
TRAS-HA
|
Chain suspension hanger adjustable nut, 1 pc |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
0207853 -
TRAS-A 1500
|
Galv. cover for TRAS, L=1.5m, ball resistant with TRAS-AB |
|
|
0207869 -
TRAS-BSHL 1../2..
|
Luminaire fixing SHL 1/2-lamp incl. ZKA-SHL (1/luminaire) |
|
|
|
0207942 -
TRAS-BSHL 3../4..
|
Lum. fixing SHL 4../4..-3 1/2-lamp incl. ZKA-SHL (1/lum.) |
|
|
0207083 -
TRAS-AB
|
Fixing plate for ball resistant mounting of TRAS-A |
|
|
0207870 -
TRAS-B
|
Luminaire fixing for surface mounted luminaires |
|
|
0207944 -
TRAS-HAS
|
Angular chain suspension hanger, 1 pc |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
