SHL2-AE1500NDWS840MPO1200-RF / 0627790//420
Product Description
Ceiling light from the SHL product family. Optical control via Microprismatic cover with an opal diffuser, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 11900 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 5100 - 11900 lm. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Pendant and ceiling mounting of the luminaires with corresponding fixing kits. Time-saving click mounting of the luminaires on the TRAS trunking system. Ball resistant pendant mounting of SHL2-AE... on one trunking, SHL2-AM... on two parallel trunkings. With the accessory ZBS-D SHL2... accessory, the luminaire can be mounted directly on the ceiling or mounting surface without trunking. The luminaire must be opened for this. Continuous mounting via external connector SHL-LV, knock-out opening D 20 at the front for through wiring. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Order Information
| Item number | 0627790//420 |
| GTIN | 4029299556438 |
General
| Product category | Ceiling light |
| Range of application | Industry | Sports and multipurpose halls |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 248 mm |
| Dimension H | 80 mm |
| Dimension A1 | 1350 mm |
| Dimension A3 | 150 mm |
| Dimension K1 | 30 mm |
| Dimension K2 | 75 mm |
| Net weight | 12.000 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK05 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -40–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 84.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Microprismatic cover with an opal diffuser |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 11900 lm |
| Maximum rated luminous flux | 5100 - 11900 lm |
| Luminaire efficiency | 142 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 47 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Connectivity and System Integration
| Item number - Designation | Product Description | Download | Wishlist |
0207945 -
SHL-LV 1-2..
|
Luminaire connector for SHL-L 180/280, SHL2-AE.., 1 piece |
|
|
|
0207946 -
SHL-LV 3.. LB=370
|
Luminaire connector for SHL-L 380, SHL2-AM..., 1 piece |
|
|
|
0208389 -
SHL-LV 4.. LB=466
|
Luminaire connector for SHL-L 480, 1 piece |
|
|
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
| 0209362 - ZIDV-SHL2 1500/3/1.5 | Internal through wiring, 3 x 1.5 mm² for SHL2-A...1500... |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0208347 -
VLSPSO-KH
|
Tension clamp with eyelets and carabiner, adjustment range 50 mm, maximum load 20 kg, 1 piece |
|
|
0205888 -
VLKH
|
Snap hook, maximum load 20 kg, 1 piece |
|
|
| 0209320 - ZBS-D SHL2 H20 | Ceiling fixture, height 20 mm, 1 piece |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Link chain to DIN 5686, diameter 3.1 mm, galvanised, maximum load 20 kg, length 1 m |
|
|
0209316 -
TRAS-BSHL2-AM..
|
Luminaire mounting bracket for SHL 3-lamp luminaires with clamp cover |
|
|
0200228 -
TRA 002 SHL M5X20
|
Lighting suspension bracket for the SHL lighting series, galvanised steel swing hook M5x20, 1 piece |
|
|
0200999 -
TRA 216/224-SHL 3../4..
|
Crossbar for SHL 3..+4.., SHL2-AM.., mounting spacing 216 mm, 224 mm |
|
|
| 0227927 - ZBS-D SHL2 H5 | Ceiling fixture SHL, height 5 mm, 4 spacer lugs |
|
|
|
0209315 -
TRAS-BSHL2-AE..
|
Light fixture bracket for SHL 2-lamp luminaires with clamp cover |
|
|
0205887 -
VLBP
|
Plate with eyelet for ceiling fixture, maximum load 20 kg, 1 piece |
|
|
Mounting and Fastening (ball resistant)
| Item number - Designation | Product Description | Download | Wishlist |
0207083 -
TRAS-AB
|
Mounting plate for ball resistant mounting of TRAS-A |
|
|
Tool
| Item number - Designation | Product Description | Download | Wishlist |
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easily opening the light frame |
|
|
Ceiling light from the SHL product family. Optical control via Microprismatic cover with an opal diffuser, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 11900 lm in light colour 840, adjustable luminous flux: in steps. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 5100 - 11900 lm. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP40. Pendant and ceiling mounting of the luminaires with corresponding fixing kits. Time-saving click mounting of the luminaires on the TRAS trunking system. Ball resistant pendant mounting of SHL2-AE... on one trunking, SHL2-AM... on two parallel trunkings. With the accessory ZBS-D SHL2... accessory, the luminaire can be mounted directly on the ceiling or mounting surface without trunking. The luminaire must be opened for this. Continuous mounting via external connector SHL-LV, knock-out opening D 20 at the front for through wiring. With electronic electrical component xFlex. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note “ball resistant“:RIDI luminaires with this sign are produced to the appropriate mechanical and photometric standards demanded for sports hall lighting. They comply with ball-resistant safety requirements according to DIN 18032, part 3.
Order Information
| Item number | 0627790//420 |
| GTIN | 4029299556438 |
General
| Product category | Ceiling light |
| Range of application | Industry | Sports and multipurpose halls |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 248 mm |
| Dimension H | 80 mm |
| Dimension A1 | 1350 mm |
| Dimension A3 | 150 mm |
| Dimension K1 | 30 mm |
| Dimension K2 | 75 mm |
| Net weight | 12.000 kg |
Mounting
| Mounting type | Attachment | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP40 |
| Impact resistance | IK05 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -40–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 84.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Microprismatic cover with an opal diffuser |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 11900 lm |
| Maximum rated luminous flux | 5100 - 11900 lm |
| Luminaire efficiency | 142 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 47 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

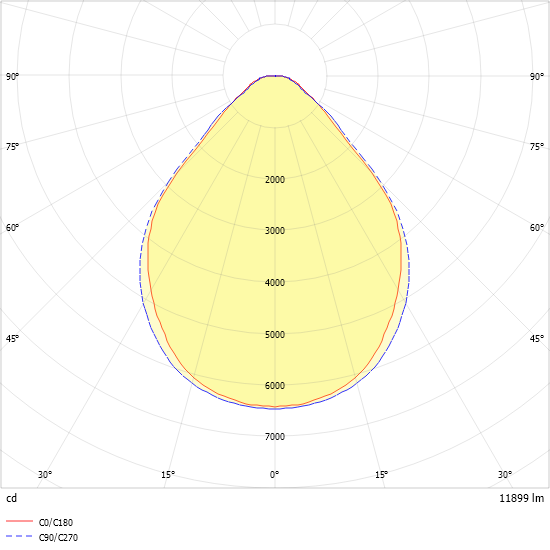

Light distribution curve
