SPN-R1X055/15ND-SET / 0450001//673
Product Description
Wall light from the SPN product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 1010 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, white, protection rating IP40. Direct ceiling or wall mounting without additional accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0450001//673 |
| GTIN | 4029299464054 |
General
| Product category | Wall light |
| Range of application | Education | Office | Industry |
Dimensions
| Dimension L | 660 mm |
| Dimension B | 67 mm |
| Dimension H | 97 mm |
| Dimension A1 | 532 mm |
| Dimension K | 90 mm |
| Net weight | 1.690 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Wall |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | white |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 9.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 1010 lm |
| Luminaire efficiency | 112 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Spare parts
| Item number - Designation | Product Description | Download | Wishlist |
| 0203361 - WSPN 114 SATINE | Replacement diffuser made from UV-stabilised PMMA, opal satin finish, for SPN-R..055/SPN0660 |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 1204992LF - R-TUBE-G2 055-840M0150 LF | 549 | 4000 K | matt |
|
|
Wall light from the SPN product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE installed, Exchange by end customer possible. The luminaire generates a rated luminous flux of 1010 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, white, protection rating IP40. Direct ceiling or wall mounting without additional accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0450001//673 |
| GTIN | 4029299464054 |
General
| Product category | Wall light |
| Range of application | Education | Office | Industry |
Dimensions
| Dimension L | 660 mm |
| Dimension B | 67 mm |
| Dimension H | 97 mm |
| Dimension A1 | 532 mm |
| Dimension K | 90 mm |
| Net weight | 1.690 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Wall |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | white |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA opal |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 9.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 1010 lm |
| Luminaire efficiency | 112 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

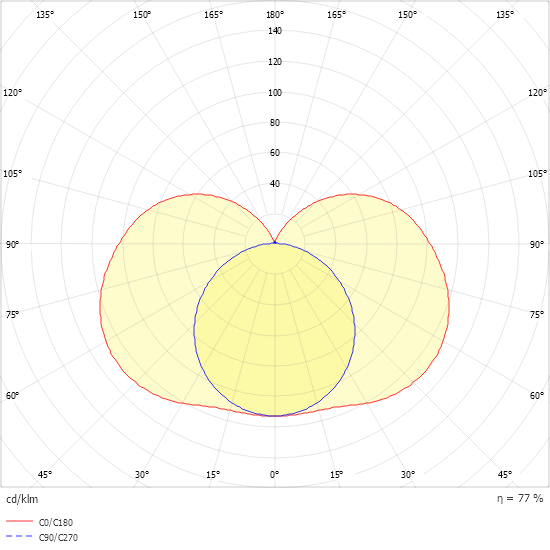

Light distribution curve
