SURVIVOR069DAWS840S0250 / 0632207
Product Description
Ceiling light from the SURVIVOR product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2710 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Vandal-proof up to 100 joules. Ceiling and wall mounting without additional accessories. Corner mounting with corresponding accessory kit (see accessories). Cable entry at the front. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0632207 |
| GTIN | 4029299539462 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 690 mm |
| Dimension B | 240 mm |
| Dimension H | 73 mm |
| Dimension A1 | 652 mm |
| Dimension A2 | 150 mm |
| Net weight | 6.200 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 4 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK11+ 100 J |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 19.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 2710 lm |
| Luminaire efficiency | 143 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209355 - SURVIVOR DV069-5X2.5 | Through wiring set, internal for SURVIVOR069, 5x2.5 mm² |
|
|
| 0209238 - SURVIVOR BLIND-069WS | Dummy cover, 0.69 m, white |
|
|
| 0209239 - SURVIVOR BLIND-130WS | Dummy cover, 1.3 m, white |
|
|
| 0209240 - SURVIVOR BLIND-160WS | Dummy cover, 1.6 m, white |
|
|
0209286 -
SURVIVOR TP25-490WS
|
Media support profile (TP) (h = 27mm), 4.9 m, white |
|
|
0209326 -
SURVIVOR TP25-100WS
|
Media support profile (TP) (h = 27mm), 1.0 m, white |
|
|
0209243 -
SURVIVOR BLIND-EPWS
|
End plate for dummy cover, white, 1 piece |
|
|
| 0209338 - SURVIVOR PR-GS | Sliding slide for TP, M16 female thread connection, V2A, 1 piece |
|
|
0209331 -
ZRP-PRH16
|
Pendant tube holder, V2A, 1 piece |
|
|
|
0209329 -
ZRP-PR16X3-100WS
|
Pendant tube 16x3, M16 male thread connection, 1.0 m, white, 1 piece |
|
|
|
0209330 -
ZRP-PR16X3-060WS
|
Pendant tube 16x3, M16 male thread connection, 0.6 m, white, 1 piece |
|
|
0209244 -
SURVIVOR EM-HWB
|
Wall bracket (45°), double for joint, V2A, 1 piece |
|
|
0209335 -
SURVIVOR BLIND-WFH100WS
|
Dummy cover, hor. 90° corner, 1.0x1.0 m, white |
|
|
0209336 -
SURVIVOR BLIND-WFV100WS
|
Dummy cover, vt. 90° corner, 1.0x1.0 m, white |
|
|
0209257 -
SURVIVOR EM-HWE
|
Wall bracket (45°), easier for termination, V2A, 1 piece |
|
|
0209325 -
SURVIVOR TP60-100WS
|
Media support profile (TP) (h = 60 mm), 1.0 m, white |
|
|
0209237 -
SURVIVOR TP60-490WS
|
Media support profile (TP) (h = 60 mm), 4.9 m, white |
|
|
| 0209231 - SURVIVOR TP25/60-LV | Straight connector for media support profiles, V2A, 1 piece |
|
|
| 0209339 - SURVIVOR PMH-TP25/TP60 WS | Pendulum multi holder media support profiles, white, 1 piece |
|
|
0209246 -
SURVIVOR BLIND-TP60WFH100WS
|
Dummy cover + TP (h = 60 mm), hor. 90° corner, 1.0x1.0 m, white |
|
|
0209337 -
SURVIVOR BLIND-E45WFH100WS
|
Dummy cover + 45° wall bracket, hor. 90° corner, 1.0x1.0 m, white |
|
|
0209333 -
SURVIVOR BLIND-TP25WFH100WS
|
Dummy cover + TP (h = 27 mm), hor. 90° corner, 1.0x1.0 m, white |
|
|
0209340 -
SURVIVOR TP25-EPWS
|
End plate for media support profile (h = 27 mm), white, 1 piece |
|
|
0209236 -
SURVIVOR TP60-EPWS
|
End plate for media support profile (h = 60 mm), white, 1 piece |
|
|
0209256 -
SURVIVOR EM-EPWS
|
End plate for dummy lamp, 45° corner mounting, white, 1 piece |
|
|
0209334 -
SURVIVOR BLIND-TP25WFV100WS
|
Dummy cover + TP (h = 27 mm), vt. 90° corner, 1.0x1.0 m, white |
|
|
0209332 -
SURVIVOR BLIND-TP60WFV100WS
|
Dummy cover + TP (h = 60 mm), vt. 90° corner, 1.0x1.0 m, white |
|
|
Ceiling light from the SURVIVOR product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2710 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Vandal-proof up to 100 joules. Ceiling and wall mounting without additional accessories. Corner mounting with corresponding accessory kit (see accessories). Cable entry at the front. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0632207 |
| GTIN | 4029299539462 |
General
| Product category | Ceiling light |
| Range of application | Industry | Traffic routes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 690 mm |
| Dimension B | 240 mm |
| Dimension H | 73 mm |
| Dimension A1 | 652 mm |
| Dimension A2 | 150 mm |
| Net weight | 6.200 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 4 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK11+ 100 J |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 19.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 2710 lm |
| Luminaire efficiency | 143 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

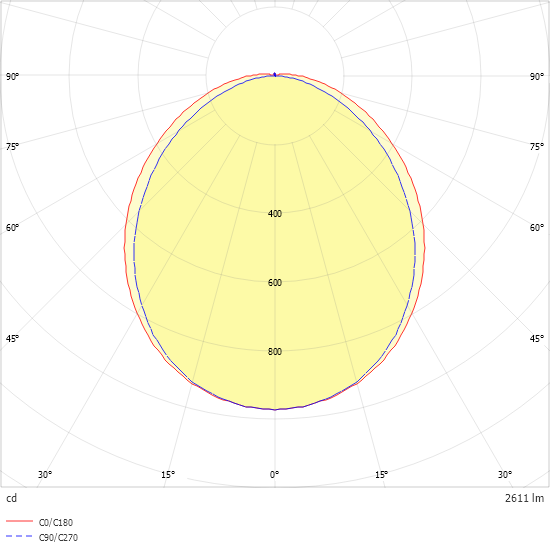

Light distribution curve
