TINO NDFSW930M0250 / 0326744AQ
Product Description
Spotlight from the TINO product family. Optical control via Reflector, beam pattern symmetric, narrow beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2600 lm in light colour 930, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, similar to RAL 9005, protection rating IP20. Mounting via 3-circuit lighting track adapter on RIDI track. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0326744AQ |
| GTIN | 4029299547115 |
General
| Product category | Spotlight |
| Range of application | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 258 mm |
| Dimension B | 92 mm |
| Dimension H | 195 mm |
| Net weight | 0.89 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Power rail |
| Connection type | Power rail adapter |
| Number of poles | 3 |
| Adjustability | rotatable/swivelling |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 20.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Reflector |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Medium |
| UGR class | ≤ 16 |
| Rated luminous flux | 2600 lm |
| Luminaire efficiency | 130 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 90 |
| Farbwiedergabeindex R9 | |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0209233 - ZV-TINO-M | Replacement medium reflector, 24° beam angle |
|
|
| 0209234 - ZV-TINO-F | Replacement flood reflector, 37° beam angle |
|
|
| 0209232 - ZV-TINO-S | Replacement spot reflector, 15° beam angle |
|
|
| 0209235 - ZV-TINO-SF | Replacement super flood reflector, 52° beam angle |
|
|
| 0209242 - ZV-TINO-GS | Toughened safety glass |
|
|
| 0209241 - ZV-TINO-DR | Replacement black decorative ring |
|
|
Spotlight from the TINO product family. Optical control via Reflector, beam pattern symmetric, narrow beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 2600 lm in light colour 930, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, black, similar to RAL 9005, protection rating IP20. Mounting via 3-circuit lighting track adapter on RIDI track. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0326744AQ |
| GTIN | 4029299547115 |
General
| Product category | Spotlight |
| Range of application | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension L | 258 mm |
| Dimension B | 92 mm |
| Dimension H | 195 mm |
| Net weight | 0.89 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Power rail |
| Connection type | Power rail adapter |
| Number of poles | 3 |
| Adjustability | rotatable/swivelling |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 20.0 W |
| Protection class | II |
Lighting technology
| Light distributor | Reflector |
| Reflector | high gloss |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | Medium |
| UGR class | ≤ 16 |
| Rated luminous flux | 2600 lm |
| Luminaire efficiency | 130 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 90 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
Download Center

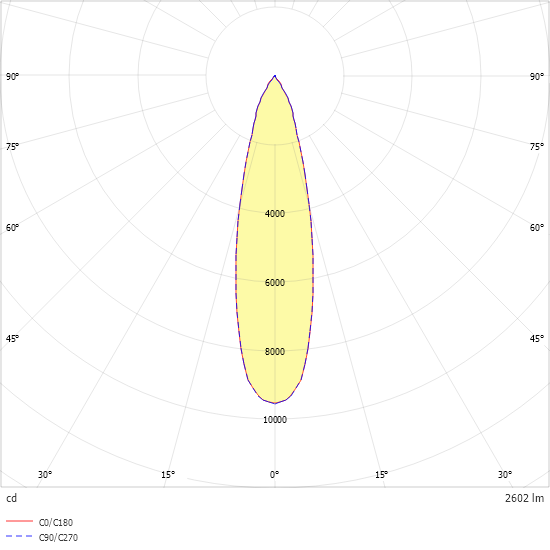

Light distribution curve
