VAPO1500DAKG840B1500 | 0931294
Product Description
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales, storage and administrative areas for packaged food.
They are suitable for use in sales and storage areas for unpackaged food.
They are suitable for use in food production areas without the use of high-pressure cleaners.
Order Information
| Item number | 0931294 |
| GTIN | 4071222196099 |
| Delivery commitment | on demand |
General
| Product category | Ceiling light |
| Range of application | Industry | Food |
| Range of application HACCP | Packaged food | Unpackaged food | Production |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1454 mm |
| Dimension B | 102 mm |
| Dimension H | 80 mm |
| Dimension A1 | 980 mm |
| Net weight | 2.210 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | grey |
| Protection class | IP66 |
| Impact resistance | IK08 |
| Glow-wire test | 850 °C |
| Permissible ambient temperature | -20–35 °C |
| Housing material | Plastic |
| Cover material | PC opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 90.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

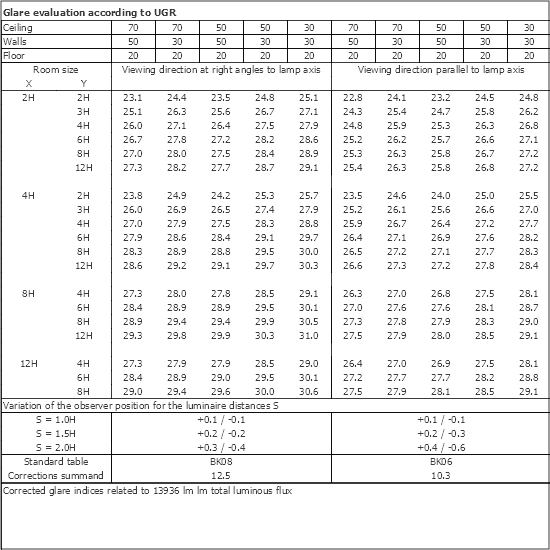

| UGR class | > 25 |
| Rated luminous flux | 14900 lm |
| Luminaire efficiency | 166 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
