VENICE-E-NL-LED C EB3 32M NE / 1827540AF311
Product Description

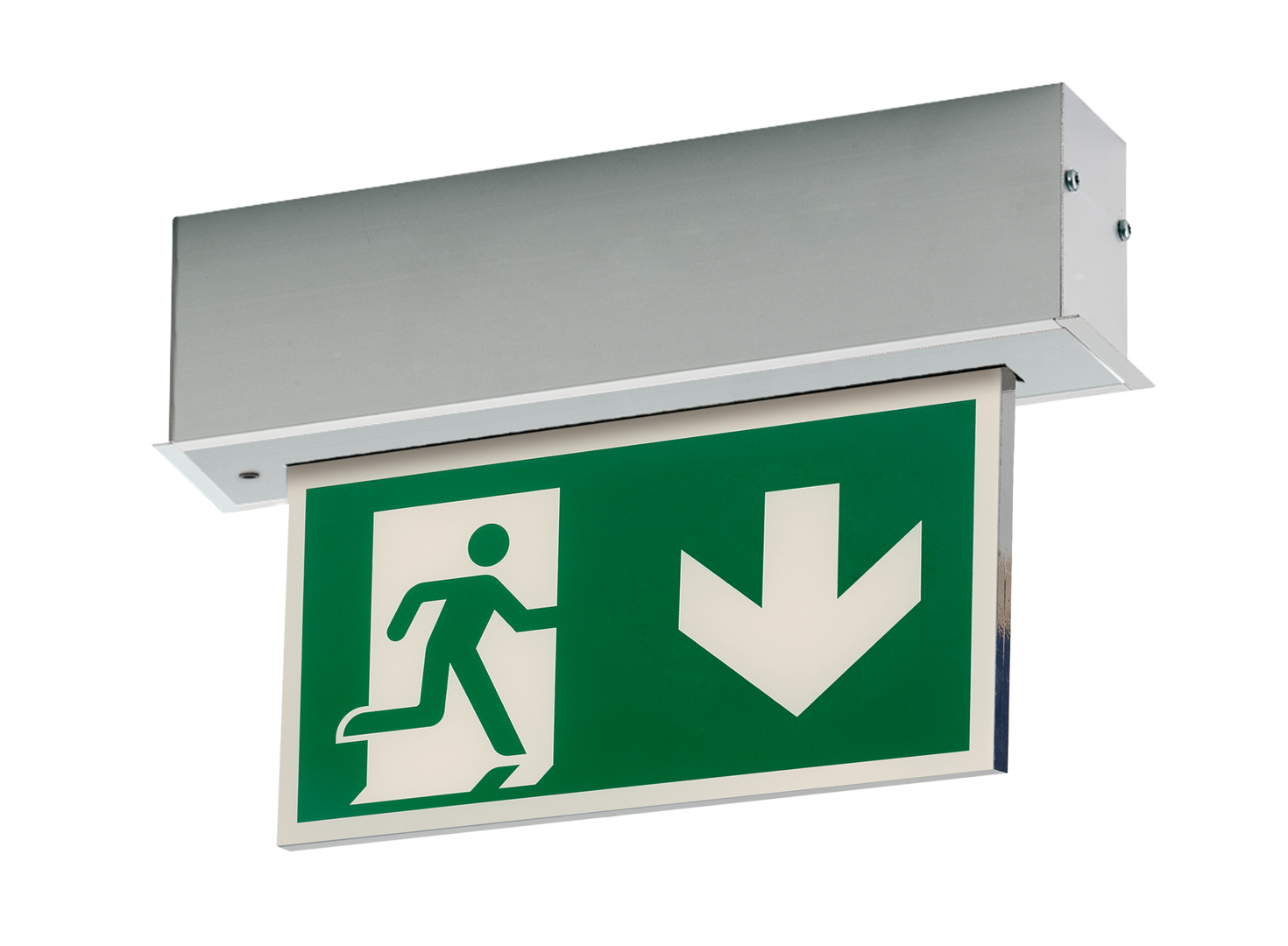

Escape sign luminaire from the VENICE product family. Lamp LED-M installed, mains connector Single battery, lighting duration in emergency mode 3 h, pictogram doppelseitig, detection range is 32 m. Housing made of Aluminium, protection rating IP40. Recessed ceiling mounting in sawn ceiling openings with mounting on bare ceiling or with recessed mounting kit, see accessories, 1 piece required per luminaire. With electronic electrical components On/Off. Nominal voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 1827540AF311 |
| GTIN | 4029299503739 |
General
| Product category | Escape sign luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 420 mm |
| Dimension B | 67 mm |
| Dimension H | 279 mm |
| Dimension BE | 72 mm |
| Dimension LE | 408 mm |
| Net weight | 2.040 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | aluminium |
| Protection class | IP40 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 1.1 W |
| Protection class | I |
Lighting technology
Light source
| Lamp | LED-M |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Stand-by circuit |
| Light duration | 3 h |
| Automatic self-test | No |
| Battery type | NiMH |
| Type of labelling | doppelseitig |
| Recognition range | 32 m |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
1208008 -
VENICE-E-DB
|
Recessed ceiling mounting kit for VENICE-E, 1 pc |
|
|
