VENICE-G-F154-DAWS-380B830 / 0536107
Product Description
Gear tray from the VENICE product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, possible. The luminaire generates a rated luminous flux of 3590 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Toolless by means of a spring clip in the aluminium profile, independently earthed for electrical safety. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0536107 |
| GTIN | 4029299472813 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Retail |
Dimensions
| Dimension L | 1183 mm |
| Dimension B | 58 mm |
| Dimension H | 78 mm |
| Net weight | 1.480 kg |
Mounting
| Mounting type | Attachment | Installation | Pendant |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 25.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | > 25 |
| Rated luminous flux | 3590 lm |
| Luminaire efficiency | 144 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
1208062AF -
VENICE-E-VSK-5
|
X-sh. lum. connector for VENICE-E, 5-pin anodised, 1 pc |
|
|
|
0208413AF -
VENICE-E-VSK-7
|
X-sh. lum. connector for VENICE-E, 7-pin, anodised, 1 pc |
|
|
1208061AF -
VENICE-E-VST-5
|
T-sh. lum. connector for VENICE-E, 5-pin, anodised, 1 pc |
|
|
|
0208415AF -
VENICE-E-VST-7
|
T-sh. lum. connector for VENICE-E, 7-pin, anodised, 1 pc |
|
|
1208060AF -
VENICE-E-VSL-5
|
L-sh. lum. connector for VENICE-E, 5-pin, anodised, 1 pc |
|
|
|
0208414AF -
VENICE-E-VSL-7
|
L-sh. lum. connector for VENICE-E, 7-pin, anodised, 1 pc |
|
|
1208006AF -
VENICE-EE NE
|
End cap for VENICE-E, natural anodized, 1 pc |
|
|
| 0208821 - VENICE-GE-LED | Gear tray release VENICE-A-F and VENICE-E-F |
|
|
0208343AF -
VENICE-A-VSL-5
|
L-sh. lum. connector for VENICE-A, 5-pin anodised, 1 pc |
|
|
|
0208411AF -
VENICE-A-VSL-7
|
L-sh. lum. connector for VENICE-A, 7-pin, anodised, 1 pc |
|
|
0208345AF -
VENICE-A-VSK-5
|
X-sh. lum. connector for VENICE-A, 5-pin, anodised, 1 pc |
|
|
0202879SI -
UKNSE SEILP.KLEMME+BALD1.5M-SI
|
Wire pendant with rect. canopy, silver, 1.5m, 1pc |
|
|
0203579 -
ZAL 3X0.75/1.5M-T
|
Connection cable transparent, 3x 0.75 mm², 1.5 m |
|
|
|
0207977 -
ZAL 3X1.5/1.5M-T
|
Connection cable transparent, 3x 1.5 mm², 1.5 m |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Connection cable transparent, 5x 1.5 mm², 1.5 m |
|
|
0202592 -
VLDHSD
|
Wire pendant VLD w. ceiling fixing, lengthw. adj. 1 pc |
|
|
0202591 -
VLDHS
|
Wire pendant VLD w. ring loop, lengthw. adj. 1 pc |
|
|
|
0208410AF -
VENICE-A-VSK-7
|
x-sh. lum.connector for VENICE-A, 7-pin, anodised, 1 pc. |
|
|
0202596 -
VLDHK
|
Chain fixing for VLD, lengthw. adjustment, 1 pc |
|
|
0202590 -
VLDHD
|
Ceiling mounting VLD, H=12.5mm, lengthwise adjustment, 1 pc |
|
|
0202597 -
VLDHW
|
Wall fixing for VLD, lengthw. adj, white, 1 pc |
|
|
0210958 -
UKNS 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
1207048 -
VLNE-7F-WS NETZEINSP.-FLEXIBEL
|
Mains connector 7-core, stranded IP20/54, 1 pc |
|
|
1207047 -
VLNE-5F-WS NETZEINSP.-FLEXIBEL
|
Mains connector 5-core, stranded IP20/54, 1 pc |
|
|
1207049 -
VLNE-11F-WS NETZEINSP.-FLEX.
|
Mains connector 11-core, stranded IP20/54, 1 pc |
|
|
0208412AF -
VENICE-A-VST-7
|
T-sh. lum. connector for VENICE-A, 7-pin, anodised, 1 pc |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
1208007AF -
VENICE-AE NE
|
End cap for VENICE-A, natural anodized, 1 pc |
|
|
0208125 -
VENICE-A-DB
|
Recessed ceiling mounting kit for VENICE-A, 1 pc |
|
|
0204332 -
ZDBE
|
Canopy, angular, white, for wire pendant mounting Y-wire pendant, ZUSP and UKNS |
|
|
0204332SI -
ZDBE-SI
|
Rect. canopy silver, for Y wire pendant, ZUSP and UKNS |
|
|
| 1208051 - VENICE-A/E BET 135/49/80 | Concrete casting b. VENICE-A/E .80 plaster/concrete ceilings |
|
|
| 1208050 - VENICE-A/E BET 128/54 | Concrete casting b. VENICE-A/E .54 plaster/concrete ceilings |
|
|
|
0208344AF -
VENICE-A-VST-5
|
T-sh. lum. connector for VENICE-A, 5-pin anodised, 1 pc |
|
|
1208063 -
VENICE-TV-7
|
Trunking connector for 7-pin wiring, 1 pc. |
|
|
|
1208009 -
VENICE-TV-5
|
Trunking connector for 5-pin wiring, 1 pc |
|
|
1207043 -
VLNE-11S-WS NETZEINSP.-STARR
|
Mains connector 11-core, single wire IP20/54, 1 pc |
|
|
1207041 -
VLNE-5S-WS NETZEINSP.-STARR
|
Mains connector 5-core, single wire IP20/54, 1 pc |
|
|
1207042 -
VLNE-7S-WS NETZEINSP.-STARR
|
Mains connector 7-core, single wire IP20/54, 1 pc |
|
|
Gear tray from the VENICE product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, possible. The luminaire generates a rated luminous flux of 3590 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP20. Toolless by means of a spring clip in the aluminium profile, independently earthed for electrical safety. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0536107 |
| GTIN | 4029299472813 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Retail |
Dimensions
| Dimension L | 1183 mm |
| Dimension B | 58 mm |
| Dimension H | 78 mm |
| Net weight | 1.480 kg |
Mounting
| Mounting type | Attachment | Installation | Pendant |
| Number of poles | 7 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Aluminium |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 25.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | > 25 |
| Rated luminous flux | 3590 lm |
| Luminaire efficiency | 144 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

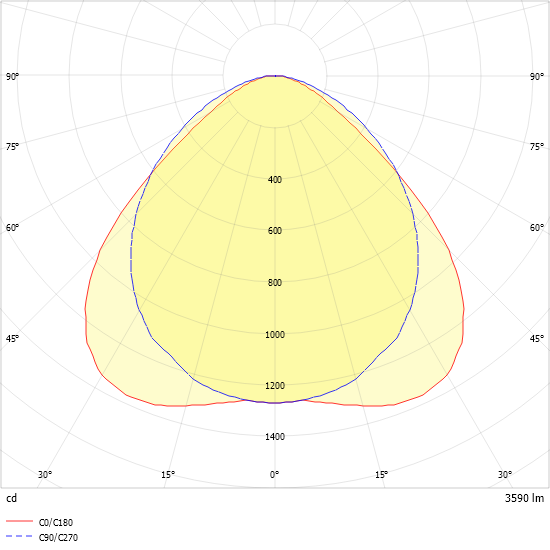

Light distribution curve
