VLDF-F180NDWS-650B830 / 0522533
Product Description
Light strip from the VLDF product family. Optical control via Cover longitudinal prismatic, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6020 lm in light colour 830, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP20. Suitable for direct mounting on normally flammable materials. Simple, cost-effective one-man mounting with screws through the keyholes in the upper part of the luminaire or with flexible fixing spacing using fixing clips (accessories). Fixing kits are available for pendant mounting, see accessories. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Order Information
| Item number | 0522533 |
| GTIN | 4029299464832 |
General
| Product category | Light strip |
| Range of application | Education | Office | Retail | Industry |
Dimensions
| Dimension L | 1488 mm |
| Dimension B | 36 mm |
| Dimension H | 50 mm |
| Dimension A1 | 1000 mm |
| Dimension A4 | 256 mm |
| Dimension K | 25 mm |
| Dimension K1 | 25 mm |
| Dimension K2 | 744 mm |
| Net weight | 1.900 kg |
Mounting
| Mounting type | Attachment |
Housing
| Colour | white |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Steel |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Cover longitudinal prismatic |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

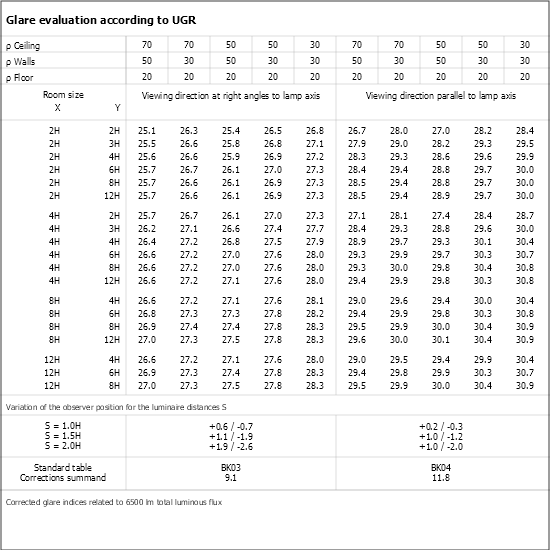

| UGR class | > 25 |
| Rated luminous flux | 6020 lm |
| Luminaire efficiency | 137 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
