ARKA-P1415DAAG830MPO0600-SEN | 0637939AG
Product Description

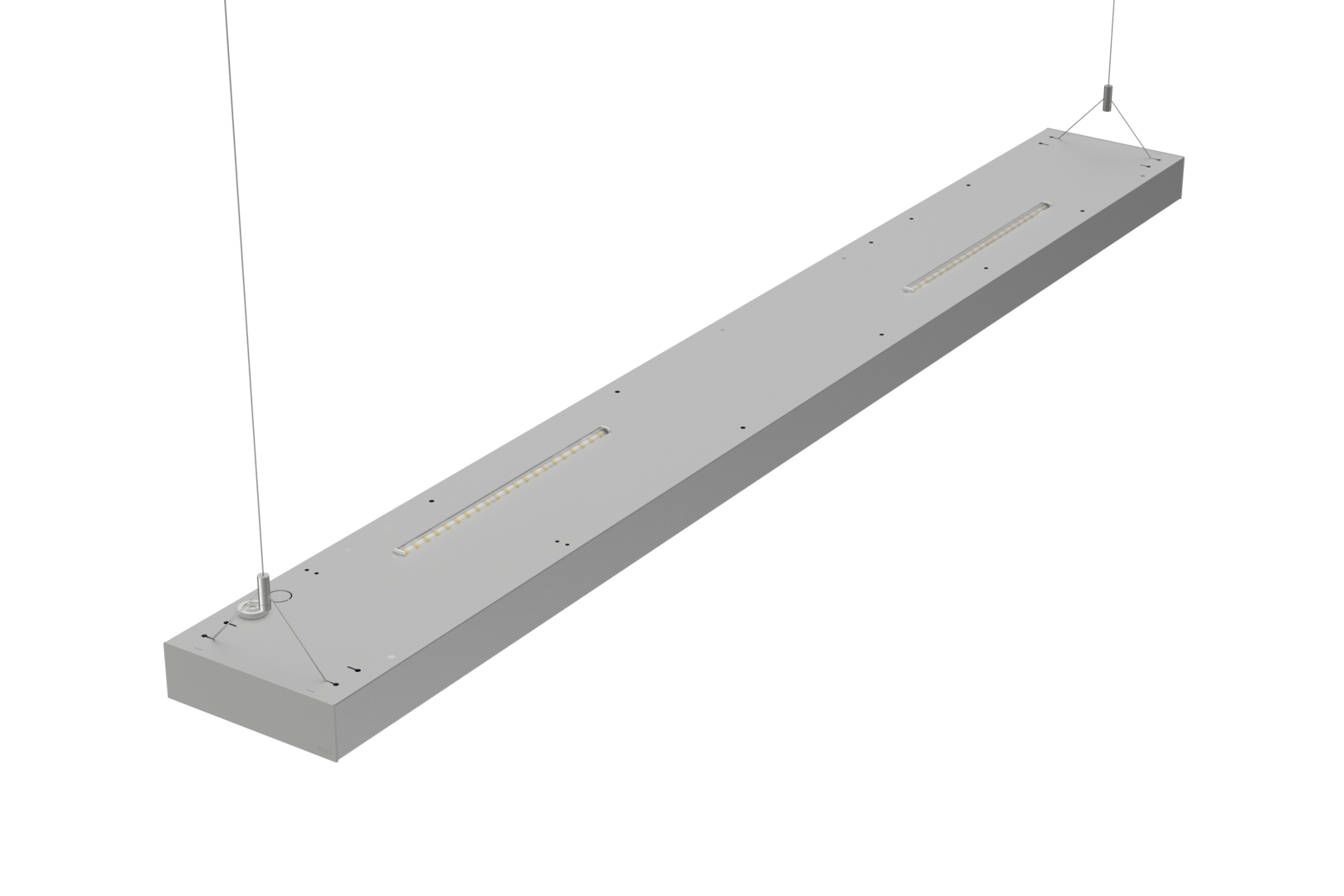

Pendant luminaire made of steel with microprismatic diffuser. Optical control by Microprismatic cover with an opal diffuser, beam pattern symmetric, wide beam, light emission direct/indirect. Linear LED module, light colour 830, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Housing made of Steel, silver, similar to RAL 9006, protection rating IP20. Cover made of PMMA clear. Mounting as single or continuous luminaire, end caps to be ordered separately. The luminaire connector is required for continuous mounting. Pendant mounting with separate accessories, one hanger per connection point for continuous mounting. Through wiring available as an accessory. With electronic electrical component. Replacement by specialist possible. Rated power 44.0 W, rated voltage 220 - 240 V AC 50 - 60 Hz, protection class I. With light and motion detector. Detection range crosswise Ø 5.4 m, detection field 22 m². Integration into Casambi systems possible (Casambi ready).
Luminaire controllable via the APCON EASY BLE / Casambi lighting control system with integrated APCON EASY BLE / Casambi light and motion detector.Connection and joint control of up to 30 additional DALI/DALI-2 luminaires possible. Integration in APCON EASY BLE / Casambi possible.
Recommended ceiling distance for pendant mounting from 0.5 m.
Order Information
| Item number | 0637939AG |
| GTIN | 4029299025262 |
| Delivery promise | 15 working days (ex warehouse Jungingen) |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Technology | Bluetooth Low Energy (BLE) |
| Sensor | Light | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1411 mm |
| Dimension B | 167 mm |
| Dimension H | 48 mm |
| Dimension AB | 1411 mm |
| Dimension AE | 1365 mm |
| Net weight | 5.400 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | silver, similar to RAL 9006 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 | Casambi |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Microprismatic cover with an opal diffuser |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 5970 lm |
| Luminaire efficiency | 136 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 47 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Sensor technology
| Transverse detection range | Ø 5.4 m |
| Angle of coverage | 360° |
| Detection field | 22 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 10 - 2000 lx |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Connectivity and System Integration
| Item number - Designation | Product Description | Download | Wishlist |
0209521 -
ARKA-VS
|
ARKA luminaire connector, 1 piece |
|
|
Controls and Sensors
| Item number - Designation | Product Description | Download | Wishlist |
0209564AG -
ARKA-AP-EWM565.5AG
|
ARKA extension module, silver (similar to RAL 9006), 1 piece, for surface-mounted and pendant luminaires, length 566 mm |
|
|
0209565AG -
ARKA-AP-EWM705.5AG
|
ARKA extension module, silver (similar to RAL 9006), 1 piece, for surface-mounted and pendant luminaires, length 706 mm |
|
|
0209566AG -
ARKA-AP-EWM1411AG
|
ARKA extension module, silver (similar to RAL 9006), 1 piece, for surface-mounted and pendant luminaires, length 1411 mm |
|
|
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
0203580 -
ZAL 5X0.75/1.5M-T
|
Transparent connection cable, 5 x 0.75 mm², 1.5 m |
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Transparent connection cable, 5 x 1.5 mm², 1.5 m |
|
|
| 0209537 - ZIDV-ARKA 1415/5/1.5 | Through wiring 5 x 1.5 mm² for ARKA-A1415/ARKA-P1415, maximum 10 A |
|
|
Housings, Covers, and Design
| Item number - Designation | Product Description | Download | Wishlist |
0209520AG -
ARKA-ED-AG
|
ARKA light end caps, colour similar to RAL 9006, made of plastic, 2 pieces |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
| 0204332AG - ZDBE-AG | Square canopy in RAL 9006, for the wire pendant mounting system as well as the ZUSP and UKNS |
|
|
0203587 -
ZSPT2Z 190 SEILPENDEL TRAPEZ
|
Y-wire pendant, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
Tool
| Item number - Designation | Product Description | Download | Wishlist |
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easily opening the light frame |
|
|
Light control
| Item number - Designation | Product Description | Download | Wishlist |
0206970
-
APCON BLE-XPRESSW
|
Bluetooth Low Energy / BLE push-button interface, white Office Plastic, white. Battery-operated, it can be mounted directly on the wall without an electrical connection or simply used as a remote control. Bluetooth Low Energy 2.4-2.483 GHz. Lithium battery CR2430 included, magnetic wall bracket enclosed. Bluetooth Low Energy / BLE user interface with 4 buttons for calling up scenes. Two buttons each for light control and coloured light control. The interface can be integrated into a Casambi network and configured via the Casambi app. |
|
|
0209153
-
APCON BLE-1SWITCH
|
Bluetooth Low Energy / BLE push-button simple. Plastic, white. As it is self-powered (no battery / power supply), it can be mounted directly on the wall without an electrical connection. The enclosed switch frame can be replaced by frames from standard switch programmes from GIRA, BERKER, JUNG and Merten. Bluetooth Low Energy 2.4-2.483 GHz, mounting directly on surfaces or installation boxes possible. Completely maintenance-free, no electrical connection required. Energy for radio signals through actuation (energy harvesting principle). Maximum range in a room 10 m. Bluetooth Low Energy / BLE push-button simple (2 push-button positions) for calling up scenes and for dimming up and down. The push-button can be integrated into a Casambi network and configured via the Casambi app. |
|
|
0209154
-
APCON BLE-2SWITCH
|
Bluetooth Low Energy / BLE dual push-button Plastic, white. As it is self-powered (no battery / power supply), it can be mounted directly on the wall without an electrical connection. The enclosed switch frame can be replaced by frames from standard switch programmes from GIRA, BERKER, JUNG and Merten. Bluetooth Low Energy 2.4-2.483 GHz, mounting directly on surfaces or installation boxes possible. Completely maintenance-free, no electrical connection required. Energy for radio signals through actuation (energy harvesting principle). Maximum range in a room 10 m. Bluetooth Low Energy / BLE push-button simple (2 push-button positions) for calling up scenes and for dimming up and down. The push-button can be integrated into a Casambi network and configured via the Casambi app. |
|
|
0209024
-
APCON BLE-COP-A
|
Bluetooth Low Energy / BLE push-button coupler with 4 potential-free inputs Office Plastic, grey. Suitable for wall mounting in installation boxes. Bluetooth Low Energy 2.4-2.483 GHz. Maximum cable length for switching inputs 0.3 m. Bluetooth Low Energy / BLE push-button coupler with 4 potential-free inputs for connecting push-buttons and other switching elements in a Casambi network. Light scenes, light values, time sequences, switch-on and switch-off commands, dimming commands and coloured light control can be assigned to these inputs via the Casambi app. |
|
|
Pendant luminaire made of steel with microprismatic diffuser. Optical control by Microprismatic cover with an opal diffuser, beam pattern symmetric, wide beam, light emission direct/indirect. Linear LED module, light colour 830, standard colour tolerance (SDCM) < 3 SDCM, lamp Replacement by specialist. Luminous flux adjustable stepless Rated service life L80B50 (tq = 25°C) 100.000 h . Housing made of Steel, silver, similar to RAL 9006, protection rating IP20. Cover made of PMMA clear. Mounting as single or continuous luminaire, end caps to be ordered separately. The luminaire connector is required for continuous mounting. Pendant mounting with separate accessories, one hanger per connection point for continuous mounting. Through wiring available as an accessory. With electronic electrical component. Replacement by specialist possible. Rated power 44.0 W, rated voltage 220 - 240 V AC 50 - 60 Hz, protection class I. With light and motion detector. Detection range crosswise Ø 5.4 m, detection field 22 m². Integration into Casambi systems possible (Casambi ready).
Luminaire controllable via the APCON EASY BLE / Casambi lighting control system with integrated APCON EASY BLE / Casambi light and motion detector.Connection and joint control of up to 30 additional DALI/DALI-2 luminaires possible. Integration in APCON EASY BLE / Casambi possible.
Recommended ceiling distance for pendant mounting from 0.5 m.
Order Information
| Item number | 0637939AG |
| GTIN | 4029299025262 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
| Technology | Bluetooth Low Energy (BLE) |
| Sensor | Light | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1411 mm |
| Dimension B | 167 mm |
| Dimension H | 48 mm |
| Dimension AB | 1411 mm |
| Dimension AE | 1365 mm |
| Net weight | 5.400 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 5 |
| Conductor cross-section | 0.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | silver, similar to RAL 9006 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–40 °C |
| Housing material | Steel |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | DALI-2 | Casambi |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 44.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Microprismatic cover with an opal diffuser |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 16 |
| Rated luminous flux | 5970 lm |
| Luminaire efficiency | 136 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 47 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Sensor technology
| Transverse detection range | Ø 5.4 m |
| Angle of coverage | 360° |
| Detection field | 22 m² |
| Optimum mounting height | 3 m |
| Maximum mounting height | 4 m |
| Brightness setpoint | 10 - 2000 lx |
Download Center

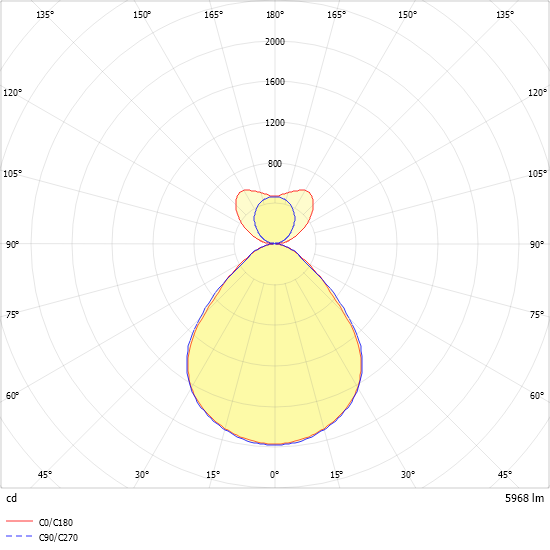

Light distribution curve
