EBRME6-R4X055-2/20ND-SM / 0850579
Product Description
Ceiling light from the EBRME product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 4420 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Installation in various ceiling systems with corresponding fixing kit (accessories) or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales, storage and administrative areas for packaged food.
Order Information
| Item number | 0850579 |
| GTIN | 4029299451368 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Food |
| Range of application HACCP | Packaged food |
Dimensions
| Dimension L | 597 mm |
| Dimension B | 597 mm |
| Dimension H | 65 mm |
| Dimension BE | 579 mm |
| Dimension LE | 579 mm |
| Net weight | 3.410 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 38.0 W |
| Faktor Verlustleistung Betriebsgerät | 1.1875 |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 4420 lm |
| Luminaire efficiency | 116 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
0217872 -
ZEL-BU-WINSTA-5-POL-DA
|
WAGO-WINSTA connector, 5-core DALI, blue, L1-N-SL-DA-DA, 1 piece |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
| 0210783 - ZBS-E OWA S32 IP54 10-783 | Universal mounting kit, IP54 installation, for OWA S32, height 10 mm |
|
|
0210779 -
ZBS-E DIPLING
|
Fixing kit for Dipling KP, OWA S1, height 8 mm |
|
|
0210127 -
ZBS-E BR 10-127
|
Fixing kit for installation, grid ceiling, mounting on the front of the luminaire |
|
|
0210713 -
ZBS-E UNI 10-713
|
Fixing kit for universal swivel brackets, clamping thickness 23–55 mm |
|
|
|
0210777 -
ZBS-E ECOPHON
|
Fixing kit for Ecophon Focus Ds/Dg, height 14 mm |
|
|
|
0210782 -
BEF.-SATZ EBR.. OWA S32
|
EBR... universal fixing kit for OWA S32, height 10 mm |
|
|
|
0210778 -
ZBS-E OWA S31
|
Fixing kit for OWA TECTA S31, height 19.50 mm |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 1206183LF - R-TUBE-G2 055-840M0250 LF | 549 | 4000 K | matt |
|
|
| 1206180LF - R-TUBE-G2 055-830M0250 LF | 549 | 3000 K | matt |
|
|
| 1206186LF - R-TUBE-G2 055-865M0250 LF | 549 | 6500 K | matt |
|
|
| 1204992LF - R-TUBE-G2 055-840M0150 LF | 549 | 4000 K | matt |
|
|
| 1204997LF - R-TUBE-G2 055-830M0150 LF | 549 | 3000 K | matt |
|
|
| 1206716LF - R-TUBE-G2 055-865M0150 LF | 549 | 6500 K | matt |
|
|
| 1205402LF - R-TUBE-G2 055-840M0225 LF | 549 | 4000 K | matt |
|
|
| 1205405LF - R-TUBE-G2 055-830M0200 LF | 549 | 3000 K | matt |
|
|
| 1206701LF - R-TUBE-G2 055-865M0225 LF | 549 | 6500 K | matt |
|
|
Ceiling light from the EBRME product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 4420 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Installation in various ceiling systems with corresponding fixing kit (accessories) or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales, storage and administrative areas for packaged food.
Order Information
| Item number | 0850579 |
| GTIN | 4029299451368 |
General
| Product category | Ceiling light |
| Range of application | Education | Office | Food |
| Range of application HACCP | Packaged food |
Dimensions
| Dimension L | 597 mm |
| Dimension B | 597 mm |
| Dimension H | 65 mm |
| Dimension BE | 579 mm |
| Dimension LE | 579 mm |
| Net weight | 3.410 kg |
Mounting
| Mounting type | Installation |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 38.0 W |
| Faktor Verlustleistung Betriebsgerät | 1.1875 |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 4420 lm |
| Luminaire efficiency | 116 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

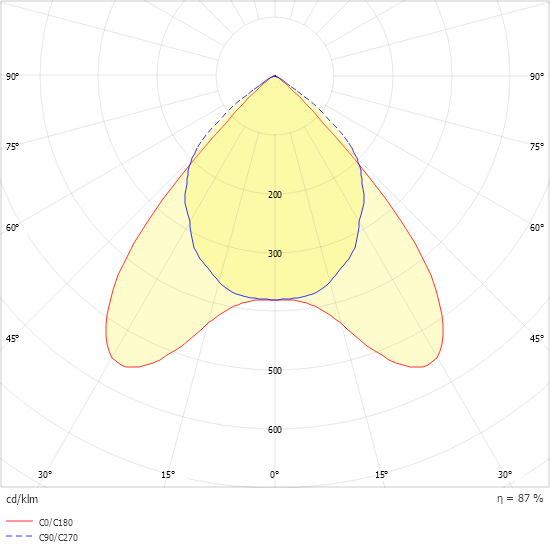

Light distribution curve
