EBRME9-R4X055-3/10DA-OSD / 0860325
Product Description
Ceiling light from the EBRME product family. Optical control via Opal cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 3030 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, white, protection rating IP54. Installation in various ceiling systems with corresponding fixing kit, or lay-in mounting in ceiling systems with visible trunking and inserted ceiling tiles. No additional fixing accessories are required for lay-in mounting. With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0860325 |
| GTIN | 4029299446388 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 597 mm |
| Dimension B | 597 mm |
| Dimension H | 95 mm |
| Dimension BE | 579 mm |
| Dimension LE | 579 mm |
| Net weight | 3.740 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | white |
| Protection class | IP54 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 27.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |

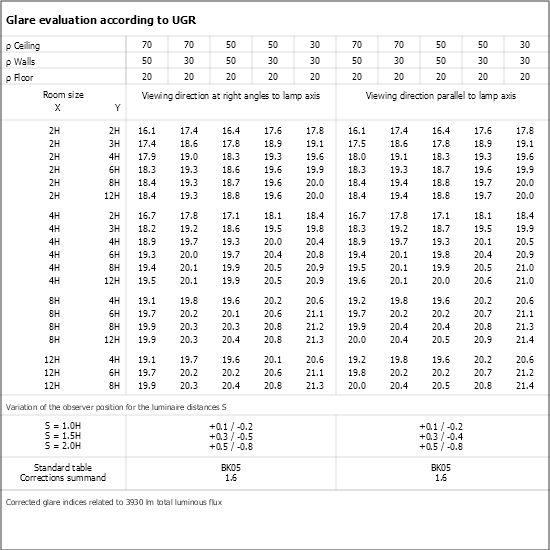

| UGR class | ≤ 22 |
| Rated luminous flux | 3030 lm |
| Luminaire efficiency | 112 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0210163 -
BEF.-SATZ EBRS... OSD/PSD IP54
|
Universal IP54 fixing kit for 23 to 55mm clamping thickness |
|
|
0210174 -
BEF.-SATZ EBRS... OSD/PSD IP54
|
Universal IP54 fixing kit for 45 to 80mm clamping thickness |
|
|
| 0210781 - ZBS-E DIPLING IP54 10-781 | Fixing kit for installation IP54 for Dipling KP, height 8.0 mm |
|
|
| 0210780 - ZBS-E OWA S31 IP54 10-780 | Fixing kit EBR... IP54 for OWA TECTA S31, height 19.5 mm |
|
|
| 0210783 - ZBS-E OWA S32 IP54 10-783 | Fixing kit EBR... IP54 for OWA S32, height 10.0 mm |
|
|
0203626 -
ZGH GLASHEBER
|
Rubber suction device for removal of the protective glass |
|
|
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easy opening of the light frame |
|
|
