F-LINE-RT1X145/40ND-SM / 0650588
Product Description
Pendant luminaire from the F-LINE product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct/indirect. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 5120 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. With accessories, the luminaire is suitable for pendant mounting with wire pendant. Wire pendant, length 1.5 metres ZSPT2Z 190 for F-LINE-RT1..., or ZSPT2Z 295 for F-LINE-RT2... to be ordered separately (see accessories). Mains cable, length 1.5 metres with transparent sheath, to be ordered separately (see accessories). Straight, L-shaped, T-shaped and cross-shaped connectors are available for the production of F-LINE constructs. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0650588 |
| GTIN | 4029299489484 |
General
| Product category | Pendant luminaire |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1553 mm |
| Dimension B | 150 mm |
| Dimension H | 37 mm |
| Dimension AE max | 1490 mm |
| Dimension AE min | 1140 mm |
| Net weight | 4.200 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 43.0 W |
| Faktor Verlustleistung Betriebsgerät | 1.1944444444444 |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

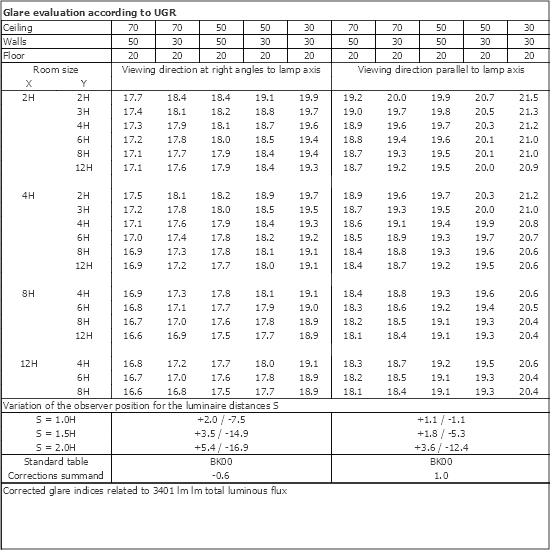

| UGR class | ≤ 19 |
| Rated luminous flux | 5120 lm |
| Luminaire efficiency | 119 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Connectivity and System Integration
| Item number - Designation | Product Description | Download | Wishlist |
0207971 -
F-LINE-VS
|
F-LINE luminaire connector, 100 mm, white, for pendant mounting, 1 piece |
|
|
|
0207971SI -
F-LINE-VS-SI
|
F-LINE luminaire connector, 100 mm, silver, for pendant mounting, 1 piece |
|
|
0208095 -
F-LINE-VS-D
|
F-LINE luminaire connector, 100 mm, white, for ceiling mounting, 1 piece |
|
|
|
0208095SI -
F-LINE-VS-D-SI
|
F-LINE luminaire connector, 100 mm, silver, for ceiling mounting, 1 piece |
|
|
0207974 -
F-LINE-VSK 1../2..
|
X-shaped luminaire connector for F-LINE luminaires, white, suitable for pendant mounting only |
|
|
|
0207974SI -
F-LINE-VSK 1../2.. SI
|
X-shaped luminaire connector for F-LINE, silver, for pendant mounting only |
|
|
0207972 -
F-LINE-VSL 1../2..
|
L-shaped luminaire connector for F-LINE, white, for pendant mounting only |
|
|
|
0207972SI -
F-LINE-VSL 1../2.. SI
|
L-shaped luminaire connector for F-LINE, silver, for pendant mounting only |
|
|
0207973 -
F-LINE-VST 1../2..
|
T-shaped luminaire connector for F-LINE, white, for pendant mounting only |
|
|
|
0207973SI -
F-LINE-VST 1../2.. SI
|
T-shaped luminaire connector for F-LINE, silver, for pendant mounting only |
|
|
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
0207977 -
ZAL 3X1.5/1.5M-T
|
Transparent connection cable, 3 x 1.5 mm², 1.5 m |
|
|
|
0207977/L300 -
ZAL 3X1.5/3.0M-T
|
Transparent connection cable, 3 x 1.5 mm², 3.0 m |
|
|
|
0207979 -
ZKF 3X0.75/1.0M
|
C-profile cable duct, for 4–5 mm diameter, 1 m, transparent |
|
|
|
0207978 -
ZAL 5X1.5/1.5M-T
|
Transparent connection cable, 5 x 1.5 mm², 1.5 m |
|
|
|
0203580 -
ZAL 5X0.75/1.5M-T
|
Transparent connection cable, 5 x 0.75 mm², 1.5 m |
|
|
| 0201255 - ZIDV-F-LINE 28/3/1.5 | Through wiring for F-LINE .28, length 1700 mm, 3 x 1.5 mm², maximum 10 A for luminaires up to approx. 1500 mm in length |
|
|
| 0201256 - ZIDV-F-LINE 28/5/1.5 DIM | Through wiring for F-LINE .28, length 1700 mm, 5 x 1.5 mm², maximum 10 A for luminaires up to approx. 1500 mm in length |
|
|
| 0201253 - ZIDV-F-LINE 35/3/1.5 | Through wiring for F-LINE .35, length 2000 mm, 3 x 1.5 mm², maximum 10 A for luminaires up to approx. 1800 mm in length |
|
|
| 0201254 - ZIDV-F-LINE 35/5/1.5 DIM | Through wiring for F-LINE .35, length 2000 mm, 5 x 1.5 mm², maximum 10 A for luminaires up to approx. 1800 mm in length |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0203587 -
ZSPT2Z 190 SEILPENDEL TRAPEZ
|
Y-wire pendant, ceiling fixture, cylinder, 1.5 m, 1 piece |
|
|
0207976 -
ZSPT2ZE 190 BALDA.+SEILP. 1.5M
|
Y-wire pendant, square canopy, 1.5 m, 1 piece |
|
|
0207976SI -
ZSPT2ZE 190 BALDA.+SP. 1.5M-SI
|
Y-wire pendant, square canopy, silver, 1.5 m, 1 piece |
|
|
0207975SI -
ZSPT2ZH 190 BALDA.+SP. 1.5M-SI
|
Y-wire pendant, semi-circular canopy, silver, 1.5 m, 1 piece |
|
|
0207975 -
ZSPT2ZH 190 BALDA.+SEILP. 1.5M
|
Trapezoidal wire pendant, semi-circular canopy, white, 1.5 m, 1 piece |
|
|
0204332 -
ZDBE
|
Square canopy, white, for wire pendant mounting, ZUSP and UKNS |
|
|
0204332SI -
ZDBE-SI
|
Square canopy, silver, for the Y-wire pendant mounting, ZUSP and UKNS |
|
|
Tool
| Item number - Designation | Product Description | Download | Wishlist |
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easily opening the light frame |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 0206981LF - RT360 145-840M0600 LF | 1443 | 4000 K | matt |
|
|
| 0206980LF - RT360 145-830M0550 LF | 1443 | 3000 K | matt |
|
|
| 0206982LF - RT360 145-865M0600 LF | 1443 | 6500 K | matt |
|
|
| 0206942LF - RT360 145-830M0350 LF | 1443 | 3000 K | matt |
|
|
| 0206943LF - RT360 145-840M0350 LF | 1443 | 4000 K | matt |
|
|
| 0206944LF - RT360 145-865M0350 LF | 1443 | 6500 K | matt |
|
|
| 0206951LF - RT360 145-830M0450 LF | 1443 | 3000 K | matt |
|
|
| 0206952LF - RT360 145-840M0450 LF | 1443 | 4000 K | matt |
|
|
| 0206953LF - RT360 145-865M0450 LF | 1443 | 6500 K | matt |
|
|
