FPL2-EQ0622NDWS840MPS0400 / 0822974
Product Description
Ceiling light from the FPL product family. Optical control via , beam pattern symmetric, , light emission . Lamps LED-M installed, possible. The luminaire generates a rated luminous flux of 4025 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of , white, protection rating IP40. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | 0822974 |
| GTIN | 4029299530957 |
General
| Product category | Ceiling light |
Dimensions
| Dimension L | 620 mm |
| Dimension B | 620 mm |
| Dimension H | 13 mm |
| Dimension AE | 595 mm |
| Dimension B4 | 43 mm |
| Dimension H4 | 32 mm |
| Dimension L4 | 240 mm |
| Net weight | 2.300 kg |
Mounting
| Mounting type | Insert |
| Mounting position | Ceiling |
Housing
| Colour | white |
| Protection class | IP40 |
| Impact resistance | IK06 |
| Glow-wire test | 650 °C |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 31.4 W |
| Faktor Verlustleistung Betriebsgerät | keine R-TUBE |
| Protection class | I |
Lighting technology
| Light emission | |
| Light distribution | symmetric |

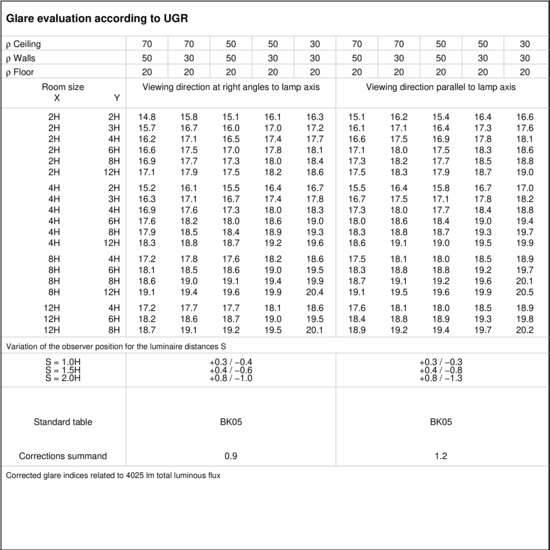

| UGR class | ≤ 19 |
| Rated luminous flux | 4025 lm |
| Luminaire efficiency | 128 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0208996 -
ZBS-ER-EQ 622
|
White mounting frame for BLP/FPL/SE Module 625 |
|
|
0208991 -
ZBS-AR FPL-EQ 622
|
White, powder coated mounting frame for FPL3-EQ Module 625 |
|
|
0206909 -
ZSP-FPL-EQ 1.5M
|
FPL Y-wire pendant, ceiling fixture, 4 carabiners, 1.5 m, 1 per luminaire |
|
|
0209080 -
ZBS-EKL FPL-EQ
|
Mounting bracket for FPL-EQ, 1 set |
|
|
0209205 -
ZPB-FPL2
|
Pendant fixing and bolts for FPL2, 1 set (spare part) |
|
|
Safety and Security
| Item number - Designation | Product Description | Download | Wishlist |
0209288 -
ZEL-FPL-EM-BOX-ND
|
3W emergency light supply unit with self-test, 3 hours |
|
|
