IRIS-W 4500-840-ND-EDS3 / SPI0000086//342
Product Description
Wall light from the IRIS product family. Optical control via Radial prismatic cover, beam pattern symmetric, wide beam, light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 4720 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Housing made of Plastic, transparent, protection rating IP20. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | SPI0000086//342 |
| GTIN | 4029299561081 |
General
| Product category | Wall light |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 50 mm |
| Dimension D | 375 mm |
| Dimension D2 | 204 mm |
| Dimension DA | 280 mm |
| Dimension H2 | 94 mm |
| Net weight | 2.400 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Wall |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | transparent |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–25 °C |
| Housing material | Plastic |
| Surface treatment of housing | |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 35.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Radial prismatic cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4720 lm |
| Luminaire efficiency | 135 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Battery type | NiMH |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
SPI0000065 -
IRIS G2 FOLIE BERNSTEIN
|
Inserted plastic foil for IRIS luminaire series, amber colour, also suitable for retrofitting mounting. |
|
|
SPI0000067 -
IRIS G2 FOLIE FERIA
|
Inserted plastic foil for IRIS light series, light green colour, also suitable for retrofitting mounting. |
|
|
SPI0000071 -
IRIS G2 FOLIE NORDISCH BLAU
|
Inserted plastic foil for the IRIS luminaire series, Nordic blue colour, also suitable for retrofitting and mounting. |
|
|
SPI0000072 -
IRIS G2 FOLIE PURPLE RAIN
|
Inserted plastic foil for IRIS luminaire series, light ROSE colour, also suitable for retrofitting. |
|
|
SPI0000074 -
IRIS G2 FOLIE TERRA
|
Inserted plastic foil for IRIS luminaire series, colour BROWN, also suitable for retrofitting. |
|
|
SPI0000066 -
IRIS G2 FOLIE BLAU
|
Inserted plastic foil for IRIS luminaire series, colour BLUE, also suitable for retrofitting mounting. |
|
|
SPI0000068 -
IRIS G2 FOLIE GELB
|
Inserted plastic foil for IRIS luminaire series, colour YELLOW, also suitable for retrofitting mounting. |
|
|
SPI0000069 -
IRIS G2 FOLIE GRÜN
|
Inserted plastic foil for IRIS luminaire series, dark green colour, also suitable for retrofitting mounting. |
|
|
SPI0000073 -
IRIS G2 FOLIE ROT
|
Inserted plastic foil for IRIS luminaire series, colour RED, also suitable for retrofitting and mounting. |
|
|
Wall light from the IRIS product family. Optical control via Radial prismatic cover, beam pattern symmetric, wide beam, light emission direct/indirect. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 4720 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of . Housing made of Plastic, transparent, protection rating IP20. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC 50 - 60 Hz.
Order Information
| Item number | SPI0000086//342 |
| GTIN | 4029299561081 |
General
| Product category | Wall light |
| Range of application | Education | Office | Retail |
| Guarantee | 5 years |
Dimensions
| Dimension H | 50 mm |
| Dimension D | 375 mm |
| Dimension D2 | 204 mm |
| Dimension DA | 280 mm |
| Dimension H2 | 94 mm |
| Net weight | 2.400 kg |
Mounting
| Mounting type | Attachment |
| Mounting position | Wall |
| Connection type | plug-in terminal |
| Number of poles | 3 |
| Conductor cross-section | 0.5–2.5 mm² |
Housing
| Colour | transparent |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | 0–25 °C |
| Housing material | Plastic |
| Cover material | PMMA clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 50–60 Hz |
| Rated power | 35.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Radial prismatic cover |
| Light emission | direct/indirect |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 4720 lm |
| Luminaire efficiency | 135 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Power supply system | Single battery |
| Wiring system | Permanent circuit |
| Light duration | 3 h |
| Battery type | NiMH |
Download Center

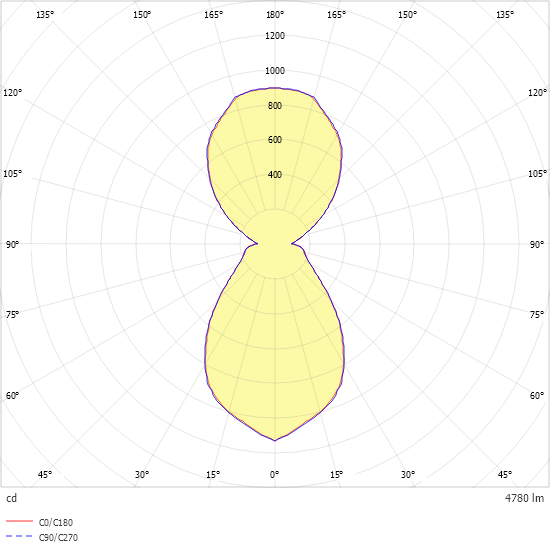

Light distribution curve
