VL2MF-NL-BNT500-7SW-EB3 / 2500051SW311
Product Description

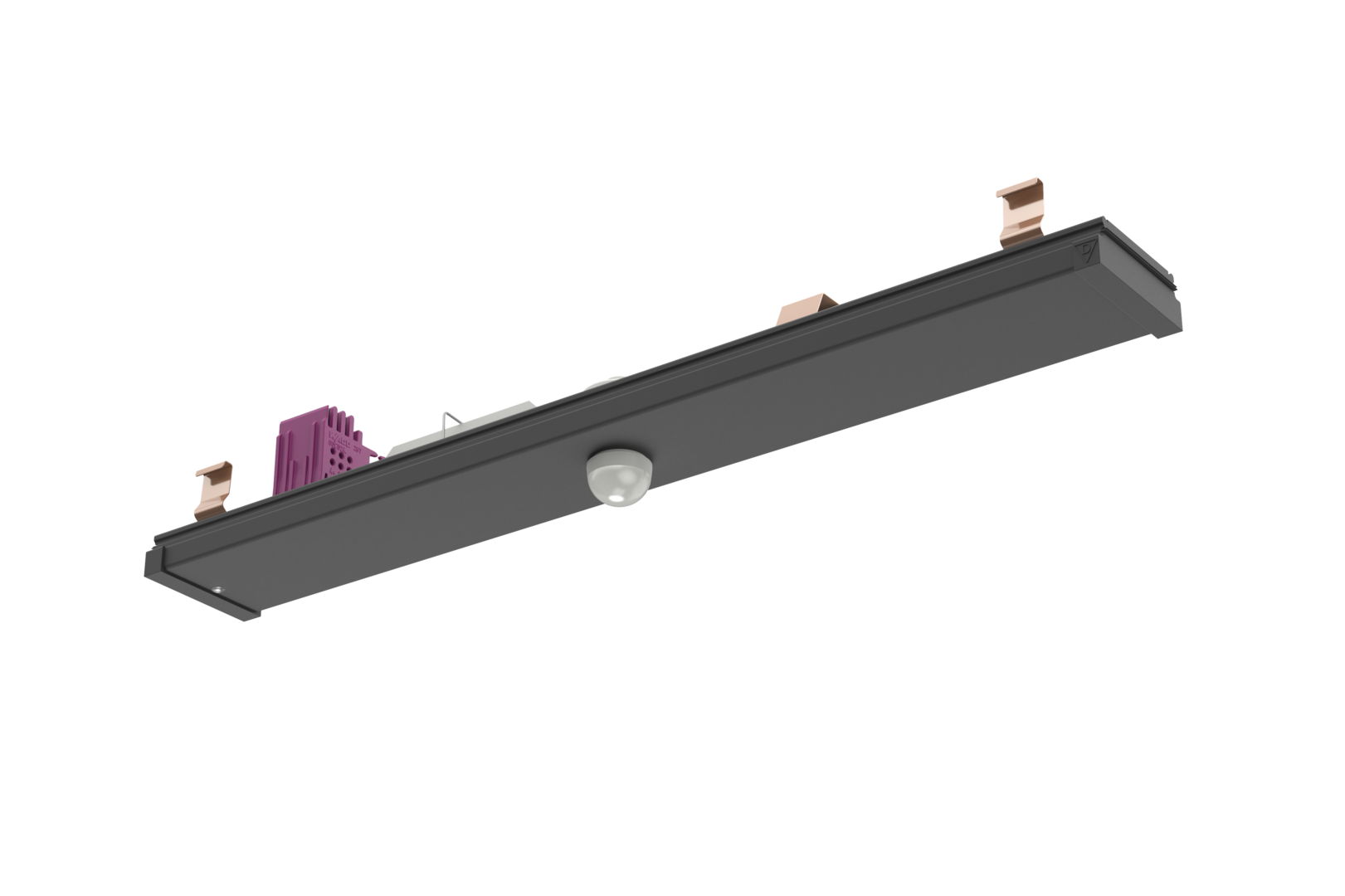

LINIA EVO modular insert "Emergency light" from the LINIA EVO product family. Module made of extruded aluminium profile, black, similar to RAL 9005. Simply clip on for electrical contact and mechanical fastening in the system-based RIDI LINIA EVO DIN rail system. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect installation (polarity reversal protection). The modules VL2MF... can be placed variably between the gear trays VL2.... Electrical adapter for automatic tapping of the PE conductor in the trunking. Coloured and optical coding for easy mounting. Mechanical coding to avoid incorrect installation (polarity reversal protection).
Order Information
| Item number | 2500051SW311 |
| GTIN | 4029299927184 |
General
| Product category | Emergency light |
| Range of application | Education | Office | Retail | Industry |
| Guarantee | 5 years |
Dimensions
| Dimension L | 500 mm |
| Dimension B | 67 mm |
| Dimension H | 85 mm |
| Net weight | 0.610 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP54 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -5–30 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–230 V, 50–60 Hz |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |

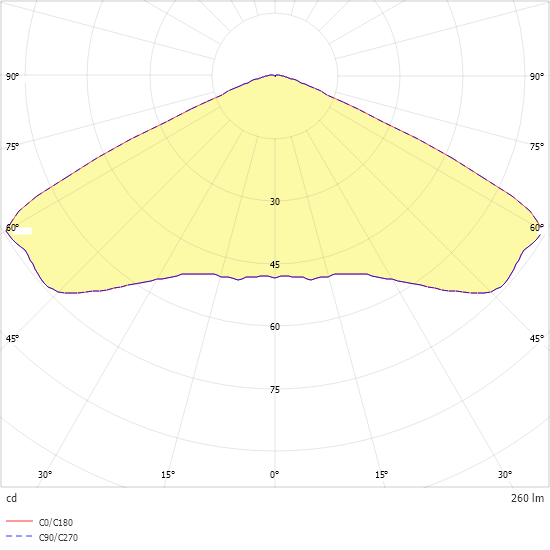

| Light distribution | symmetric |
| Luminaire efficiency | 0 lm/W |
Light source
| Lamp included | Yes |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Emergency lighting
| Wiring system | Stand-by circuit |
| Light duration | 3 h |
| Rated luminous flux in emergency mode | 260 lm |
| Battery type | NiMH |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
