VL2S-ML150-5FLWS830M9S0700 / 2550011
Product Description
Gear tray VL2S-ML from the RIDI LINIA EVO product family. Optical control by Lens from PMMA clear, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 6770 lm in light colour 830. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Luminous flux in steps adjustable from 4650 - 7780 lm. Aluminium, traffic white, similar to RAL 9016, protection rating IP20, permissible ambient temperatures -25 - 40 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound LINIA EVO trunking system. With electronic electrical component xFlex. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. The luminaire has been successfully tested in the packaged food sector.
Order Information
| Item number | 2550011 |
| GTIN | 4029299711264 |
General
| Product category | Gear tray |
| Range of application | Education | Office | Data Center | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 95 mm |
| Dimension H | 92 mm |
| Net weight | 3.225 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 5 |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–40 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PMMA clear |
Electrical version
| Type of control | xFlex |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 49.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

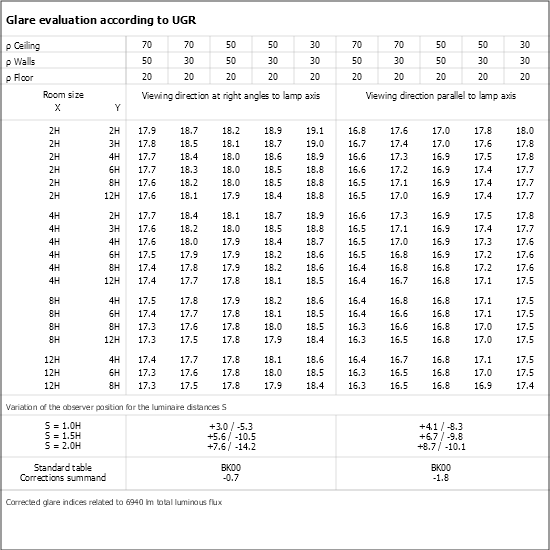

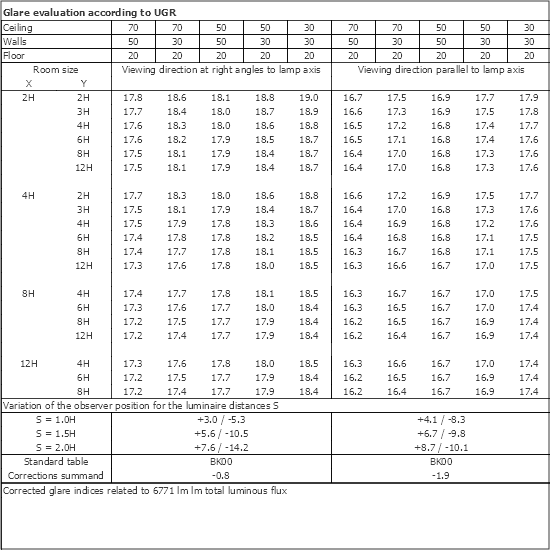

| UGR class | ≤ 19 |
| Rated luminous flux | 6770 lm |
| Maximum rated luminous flux | 4650 - 7780 lm |
| Luminaire efficiency | 138 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
