VL2MF-S500-13SW-PD4-S-R10 / 2500024SW
Product Description

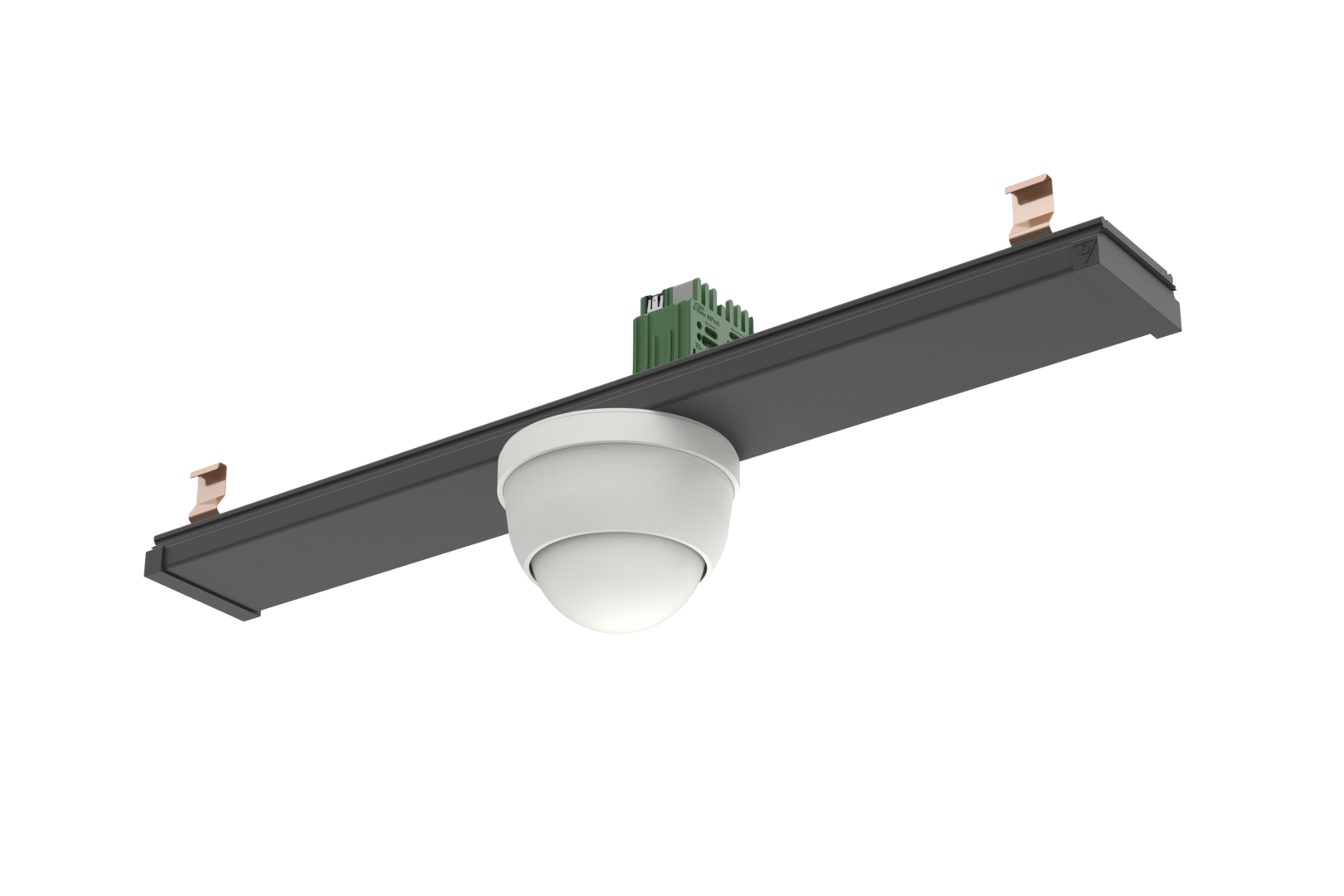

Sensor module insert with slave presence sensor (On/Off). Gear tray made of extruded aluminium profile, black, similar to RAL 9005. Sensor made of polycarbonate, UV-stabilised. Simply clip on for electrical contact and mechanical fastening in the system-based RIDI LINIA EVO DIN rail system. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect installation (polarity reversal protection). Nominal voltage 230 - 230 V AC 50 - 60 Hz. Electrical adapter for flexible tapping through wiring in the trunking. Colour and optical coding for easy mounting. With light and motion detector. Detection range crosswise Ø 24 m, detection field 452 m². Switching pulse output for connection to a master presence sensor to extend the detection field. Up to 8 slave units can be combined with one master sensor. The module inserts can be placed variably between the gear trays. Depending on the structure, modules cannot be placed in the connector area. Including cover plates/blinds to restrict the sensor detection field.
Compatibility of different APCON components only guaranteed within the respective APCON system: APCON EASY / EASY BLE / INDIVIDUAL / UNLIMITED.
Order Information
| Item number | 2500024SW |
| GTIN | 4029299711011 |
General
| Product category | Light and motion sensor |
| Range of application | Industry |
| Sensor | Light | Movement |
| Guarantee | 5 years |
Dimensions
| Dimension L | 500 mm |
| Dimension B | 103 mm |
| Dimension H | 138 mm |
| Net weight | 0.778 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 13 |
Housing
| Colour | black, similar to RAL 9005 |
| Protection class | IP54 |
| Permissible ambient temperature | -25–50 °C |
| Housing material | Aluminium |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–230 V, 50–60 Hz |
| Power consumption | 0.2 W |
| Protection class | I |
Sensor technology
| Transverse detection range | Ø 24 m |
| Frontal detection range | Ø 8 m |
| Presence detection range | Ø 6.4 m |
| Angle of coverage | 360° |
| Capture field | 452 m² |
| Optimum mounting height | 2.5 m |
| Maximum mounting height | 10 m |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
