VL2MF-S500B-7PD4N-DA2-CAS | 2500090
Product Description
Sensor module for RIDI LINIA EVO for the VL2TM mounting rail system, DALI-2 / Casambi design Master Broadcast. Gear tray made from extruded aluminium profile, traffic white, similar to RAL 9016. Sensor made from UV-stabilised polycarbonate with a ball protection cage Simply clip on for electrical contact and mechanical fastening in the system-based RIDI LINIA EVO DIN rail system. Colour and optical coding for easy mounting. Mechanical coding to prevent incorrect installation (polarity reversal protection). Rated voltage 207 - 253 V AC 50 Hz. Electrical adapter for flexible connection through wiring in trunking. Colour-coded and optically coded for easy mounting. With light and motion detector. Detection range crosswise Ø 24 m, detection field 452 m². Daylight-dependent presence detection with adjustable daylight, threshold and setpoint values, as well as an adjustable background light level and adjustable delay times. Setup and configuration via the Casambi app. The detection range can be extended by connecting to the corresponding extension sensors. Can be networked with other Casambi control elements on the same network. DALI-2 broadcast output signal for controlling up to 32 DALI gear trays. With ball protection cage.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in food production areas without the use of high-pressure cleaners.
Order Information
| Item number | 2500090 |
| GTIN | 4071222255642 |
| Delivery promise | working days (ex warehouse Jungingen) |
General
| Product category | Light and motion sensor |
| Execution | Master Broadcast |
| Range of application | Sports and multipurpose halls |
| Range of application HACCP | Production |
| Technology | Bluetooth LE |
| Sensor | Light | Movement |
| Guarantee | 5 years |

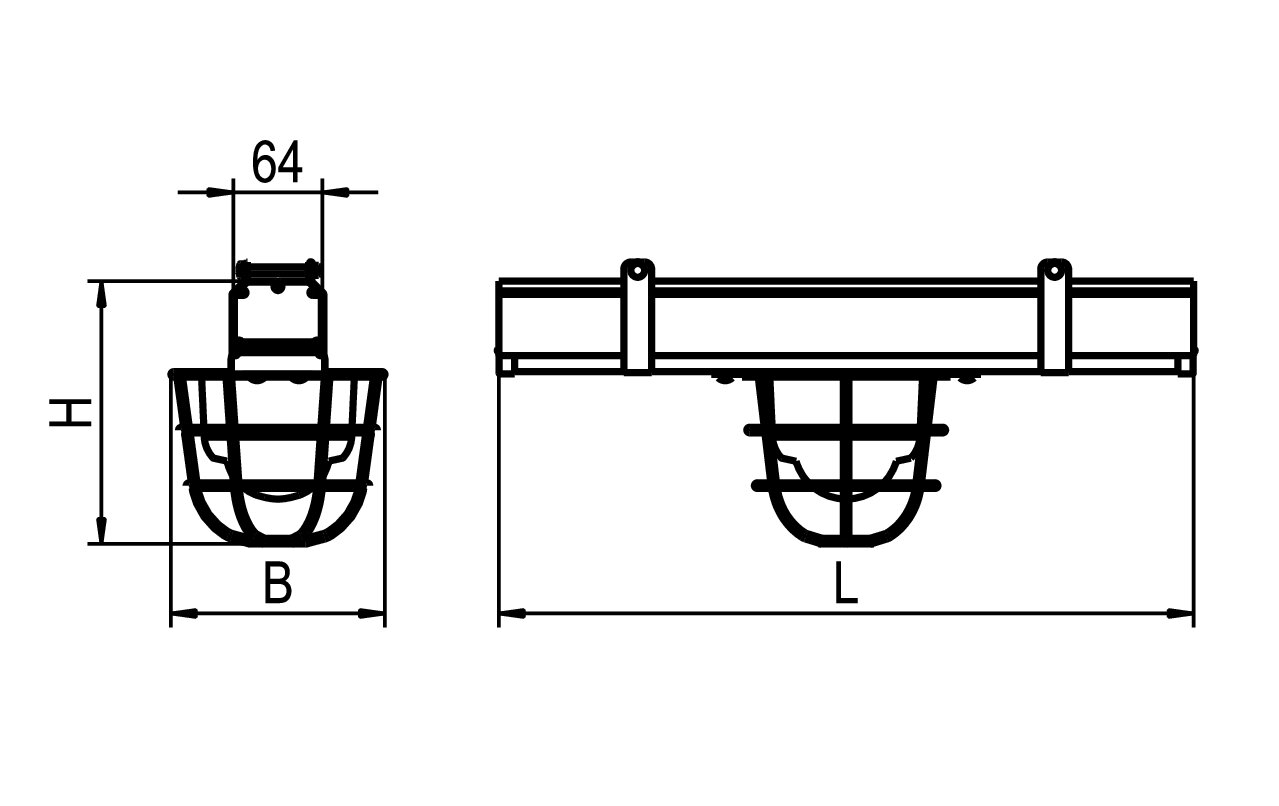

Dimensions
| Dimension L | 500 mm |
| Dimension B | 154 mm |
| Dimension H | 189 mm |
| Net weight | 1.025 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
| Conductor cross-section | 1.5–2.5 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP54 |
| Permissible ambient temperature | -5–45 °C |
| Housing material | Aluminium |
Electrical version
| Type of control | DALI-2 | Casambi |
| Nominal voltage | 207–253 V, 50 Hz |
| Protection class | I |
Sensor technology
| Transverse detection range | Ø 24 m |
| Frontal detection range | Ø 24 m |
| Presence detection range | Ø 6.4 m |
| Angle of coverage | 360° (oval) |
| Detection field | 452 m² |
| Optimum mounting height | 2.5 m |
| Maximum mounting height | 10 m |
| Brightness setpoint | 1 - 4000 lx |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
