VL2MF-HERO2-7DAWS865B3000 | 0637968//696
Product Description
Spotlight module of the RIDI LINIA EVO product family. Optical control by Lens, beam pattern symmetric, wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 28730 lm in light colour 865, adjustable luminous flux: stepless. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Aluminium, traffic white, similar to RAL 9016, protection rating IP54, permissible ambient temperatures -25 - 70 °C. Simple clipping-in for electrical contacting and mechanical fastening in the system-bound LINIA trunking system. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales and storage areas for unpackaged food.
They are suitable for use in food production areas without the use of high-pressure cleaners.
Order Information
| Item number | 0637968//696 |
| GTIN | 4071222265955 |
| Delivery commitment | on demand |
General
| Product category | High-bay spotlight |
| Range of application | Food | Sports and multipurpose halls |
| Range of application HACCP | Production | Unpackaged food |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1000 mm |
| Dimension B | 160 mm |
| Dimension H | 135 mm |
| Net weight | 5.410 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
| Adjustability | rotatable |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP54 |
| Impact resistance | IK09 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–70 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC clear (UV-stabilized) |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 159.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Reflector | white |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

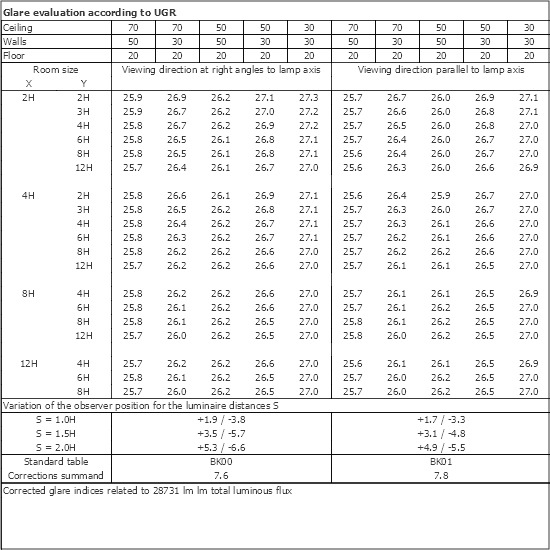

| UGR class | > 25 |
| Rated luminous flux | 28730 lm |
| Luminaire efficiency | 181 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 50.000 h |
