RLS1-DAWS830-SMB800 / 1331465
Product Description
High-bay spotlight from the RLS-LED product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 8070 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Wire pendant, tube pendant, chain and ceiling mounting with corresponding fixing accessories. Wire pendant mounting via wire pendant (2x Art. 0210958). Ball resistant mounting exclusively with chains (2x Art. 0200251), ceiling fixture (2x Art. 0205887) and snap hooks (4x Art. 0205888). With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note: For feed-through wiring from lamp to lamp, a conduit/junction box must be provided on site.
Note on “Food Hygiene Act”:These luminaires, combined with the accessory RLS…-LED-VSK PC… (clear panel attachment made of polycarbonate (accessory, order separately)), comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry.
Order Information
| Item number | 1331465 |
| GTIN | 4029299572612 |
General
| Product category | High-bay spotlight |
| Range of application | Industry | Sports and multipurpose halls | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension H | 380 mm |
| Dimension D | 270 mm |
| Net weight | 4.300 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | Plug |
| Number of poles | 5 |
| Conductor cross-section | 0.75–4 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK06 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–41 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 54.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 8070 lm |
| Luminaire efficiency | 149 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 77.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0202428 - RL-DB | Ceiling fixing for RL.1/RL.2 |
|
|
0202427 -
RL-HK
|
Chain fixing for RL.1/RL.2 , 1 pc |
|
|
0202425 -
RL-SPO 1.5
|
Wire pendant for RL.1/RL.2 1.5m with loop, 1 pc |
|
|
|
0202426 -
RL-SPO 3.0
|
Wire pendant for RL.1/RL.2 3.0m with loop, 1 pc |
|
|
| 0202437 - RLS1-LED-VSK PC | Panel attachment, clear PC, white fixing ring |
|
|
0210958 -
UKNS 1.5M
|
Wire pendant w. ceiling fixing and wire clamp, 1.5m, 1 pc |
|
|
0200251 -
TRA 008 KETTE GALV. VERZ.
|
Galvanised chain, max. 20kg , weight 0.25 kg/m |
|
|
0205888 -
VLKH
|
Carabiner hook, dimensions 50x25x5, max. 20kg, 1pc |
|
|
0205887 -
VLBP
|
Plate with loop for ceiling fixing. max. 20kg, 1 pc |
|
|
0200906 -
SLKG KETTEN-S-GLIED
|
S chain link, max.20kg, per unit |
|
|
High-bay spotlight from the RLS-LED product family. Optical control via Reflector, beam pattern symmetric, extremely wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 8070 lm in light colour 830, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Aluminium, traffic white, similar to RAL 9016, protection rating IP65. Wire pendant, tube pendant, chain and ceiling mounting with corresponding fixing accessories. Wire pendant mounting via wire pendant (2x Art. 0210958). Ball resistant mounting exclusively with chains (2x Art. 0200251), ceiling fixture (2x Art. 0205887) and snap hooks (4x Art. 0205888). With electronic electrical component DALI-2. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
Note: For feed-through wiring from lamp to lamp, a conduit/junction box must be provided on site.
Note on “Food Hygiene Act”:These luminaires, combined with the accessory RLS…-LED-VSK PC… (clear panel attachment made of polycarbonate (accessory, order separately)), comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry.
Order Information
| Item number | 1331465 |
| GTIN | 4029299572612 |
General
| Product category | High-bay spotlight |
| Range of application | Industry | Sports and multipurpose halls | Food |
| HACCP certified | Yes |
| Guarantee | 5 years |
Dimensions
| Dimension H | 380 mm |
| Dimension D | 270 mm |
| Net weight | 4.300 kg |
Mounting
| Mounting type | Pendant |
| Mounting position | Ceiling |
| Connection type | Plug |
| Number of poles | 5 |
| Conductor cross-section | 0.75–4 mm² |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP65 |
| Impact resistance | IK06 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–41 °C |
| Housing material | Aluminium |
| Surface treatment of housing | powder-coated |
| Cover material | PC clear |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 54.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Reflector |
| Reflector | matt |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 8070 lm |
| Luminaire efficiency | 149 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 3000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 77.000 h |
Download Center

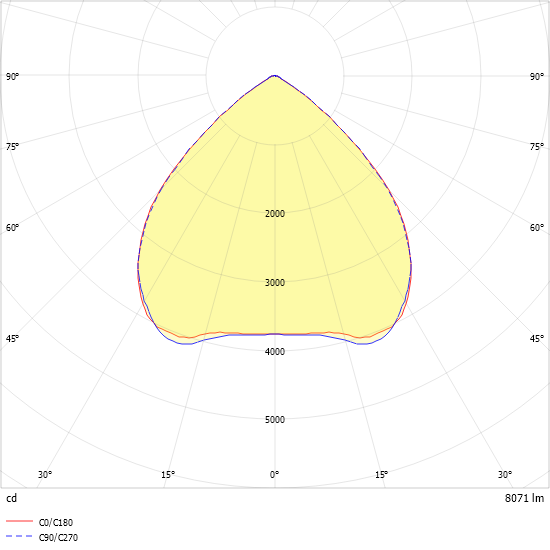

Light distribution curve
