EBRE9-R2X150/40DA-OS / 0860012
Product Description
Ceiling light from the EBRE product family. Optical control via Opal cover, beam pattern symmetric, , light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 7720 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0860012 |
| GTIN | 4029299424768 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1547 mm |
| Dimension B | 310 mm |
| Dimension H | 95 mm |
| Dimension BE | 292 mm |
| Dimension LE | 1529 mm |
| Net weight | 8.7 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 70.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |

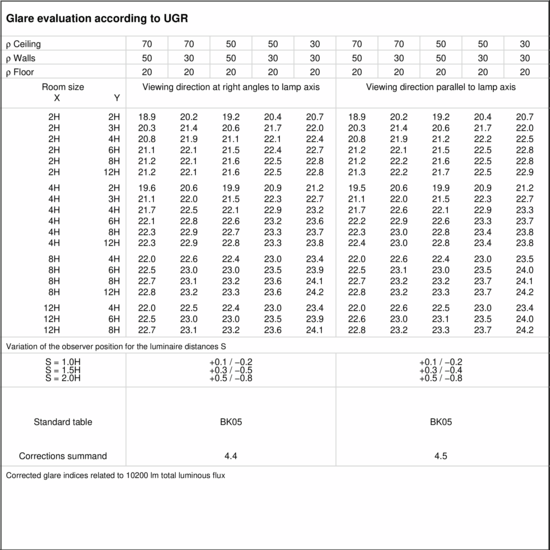

| UGR class | ≤ 22 |
| Rated luminous flux | 7720 lm |
| Luminaire efficiency | 110 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Electrical connection
| Item number - Designation | Product Description | Download | Wishlist |
0217871 -
ZEL-ST-WINSTA-5-POL-DA
|
WAGO-WINSTA connector, 5-core DALI, blue, L1-N-SL-DA-DA, 1 piece |
|
|
0217878 -
ZEL-TV-LINECT-WINSTA-5-POL-ND
|
T-distr. LINECT-WINSTA 5-core, black, L1-L2-L3-N-SL, 1St |
|
|
0217872 -
ZEL-BU-WINSTA-5-POL-DA
|
WAGO-WINSTA connector, 5-core DALI, blue, L1-N-SL-DA-DA, 1 piece |
|
|
Mounting and Fastening
| Item number - Designation | Product Description | Download | Wishlist |
0210713 -
ZBS-E UNI 10-713
|
Fixing kit for universal swivel brackets, clamping thickness 23–55 mm |
|
|
0210717 -
ZBS-E UNI 10-717
|
Fixing kit for universal swivel bracket, clamping thickness 45–80 mm |
|
|
0210127 -
ZBS-E BR 10-127
|
Fixing kit for installation, grid ceiling, mounting on the front of the luminaire |
|
|
0210770 -
ZBS-E UNI CLIP 10-770
|
Installation of fixing clips, clamping thickness H60: 12–25 mm, H90: 12–50 mm |
|
|
0210782 -
BEF.-SATZ EBR.. OWA S32
|
EBR... universal fixing kit for OWA S32, height 10 mm |
|
|
| 0210783 - ZBS-E OWA S32 IP54 10-783 | Universal mounting kit, IP54 installation, for OWA S32, height 10 mm |
|
|
|
0210777 -
ZBS-E ECOPHON
|
Fixing kit for Ecophon Focus Ds/Dg, height 14 mm |
|
|
|
0210779 -
ZBS-E DIPLING
|
Fixing kit for Dipling KP, OWA S1, height 8 mm |
|
|
Tool
| Item number - Designation | Product Description | Download | Wishlist |
0204003 -
ZRO RAHMENÖFFNER
|
Tool for easily opening the light frame |
|
|
| Item number - Bezeichnung | Length | Colour temperature | Characteristic | ||
| 0206595LF - R-TUBE 150-840M0500 LF | 1500 | 4000 K | matt |
|
|
Ceiling light from the EBRE product family. Optical control via Opal cover, beam pattern symmetric, , light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 7720 lm in light colour 840, adjustable luminous flux: stepless. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20 IP40 room side. With electronic electrical component DALI. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0860012 |
| GTIN | 4029299424768 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1547 mm |
| Dimension B | 310 mm |
| Dimension H | 95 mm |
| Dimension BE | 292 mm |
| Dimension LE | 1529 mm |
| Net weight | 8.7 kg |
Mounting
| Mounting type | Installation |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 | IP40 room side |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–25 °C |
| Housing material | Steel |
| Cover material | PMMA opal |
Electrical version
| Type of control | DALI |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 70.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Opal cover |
| Light emission | direct |
| Light distribution | symmetric |
| UGR class | ≤ 22 |
| Rated luminous flux | 7720 lm |
| Luminaire efficiency | 110 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Light distribution curve
Approvals:
Attributes:
Electrical connection
Mounting and Fastening
0210127 -
ZBS-E BR 10-127
Fixing kit for installation, grid ceiling, mounting on the front of the luminaire
0210770 -
ZBS-E UNI CLIP 10-770
Installation of fixing clips, clamping thickness H60: 12–25 mm, H90: 12–50 mm
Universal mounting kit, IP54 installation, for OWA S32, height 10 mm
Tool
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 m
