EBRPL-R1X145/45ND-SM / 0850397
Product Description
Ceiling light from the EBRPL product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 5710 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Mounting bracket for mounting the luminaire lengthways to the panels is supplied as standard. Not suitable for ceilings with filler strips. Mounting the luminaire in sawn ceiling openings is optional, please enquire at the factory. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Luminaire connection from inside with 3-pole mains connection terminal or optionally from outside with Wieland gesis TOP 3-pole adapter (see accessories art. no. 0212371).
Order Information
| Item number | 0850397 |
| GTIN | 4029299451320 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1497 mm |
| Dimension B | 84 mm |
| Dimension H | 74 mm |
| Dimension K | 740 mm |
| Dimension L1 | 1480 mm |
| Net weight | 5.2 kg |
Mounting
| Mounting type | Installation |
Housing
| System dimension | M100 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |

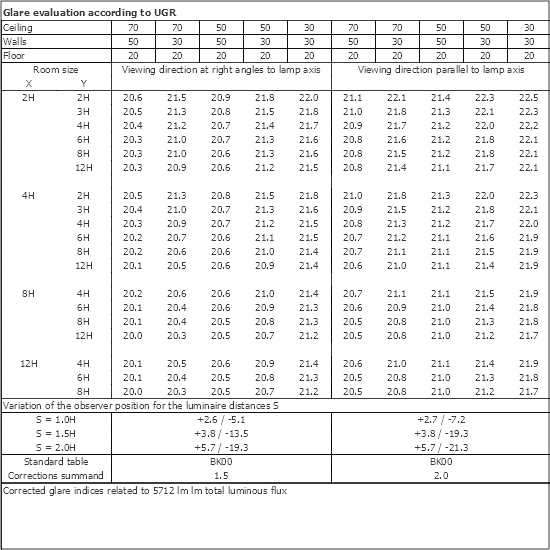

| UGR class | ≤ 22 |
| Rated luminous flux | 5710 lm |
| Luminaire efficiency | 119 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
| 0212372 - EBRPLE 1.. | End cap for EBRPL 1.. |
|
|
| 0217864 - EBRPLE 2.. | End cap for EBRPL 2.. |
|
|
0212369 -
BEF.-SATZ EBRPL 1..
|
Ceiling recessed fixing kit for sawn ceilings |
|
|
|
0212525 -
BEF.-SATZ EBRPL 2..
|
Ceiling recessed fixing kit for sawn ceilings |
|
|
| 0212526 - ZEL-BU-GESIS-TOP-2-POL-DA | WIELAND-GESIS connecting socket, BST14i2, 2-core, blue, DALI, 1 pc. |
|
|
| 0212527 - ZEL-ST-GESIS-TOP-2-POL-DA | WIELAND-GESIS connecting plug, BST14i2 ,2-core, blue, DALI, 1 pc. |
|
|
| 0212371 - ZEL-AD-GESIS-TOP 3-POL | T-distributor adaptor, 3 pin, Wieland GESIS-TOP for GST18i3 |
|
|
Ceiling light from the EBRPL product family. Optical control via Louvre, beam pattern symmetric, wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 5710 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Steel, traffic white, similar to RAL 9016, protection rating IP20. Mounting bracket for mounting the luminaire lengthways to the panels is supplied as standard. Not suitable for ceilings with filler strips. Mounting the luminaire in sawn ceiling openings is optional, please enquire at the factory. With electronic electrical component On/Off. Replacement by specialist. Rated voltage 220 - 240 V AC/DC 50 - 60 Hz.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Luminaire connection from inside with 3-pole mains connection terminal or optionally from outside with Wieland gesis TOP 3-pole adapter (see accessories art. no. 0212371).
Order Information
| Item number | 0850397 |
| GTIN | 4029299451320 |
General
| Product category | Ceiling light |
| Range of application | Education | Office |
Dimensions
| Dimension L | 1497 mm |
| Dimension B | 84 mm |
| Dimension H | 74 mm |
| Dimension K | 740 mm |
| Dimension L1 | 1480 mm |
| Net weight | 5.2 kg |
Mounting
| Mounting type | Installation |
Housing
| System dimension | M100 |
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP20 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Steel |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Louvre |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | wide beam |
| UGR class | ≤ 22 |
| Rated luminous flux | 5710 lm |
| Luminaire efficiency | 119 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

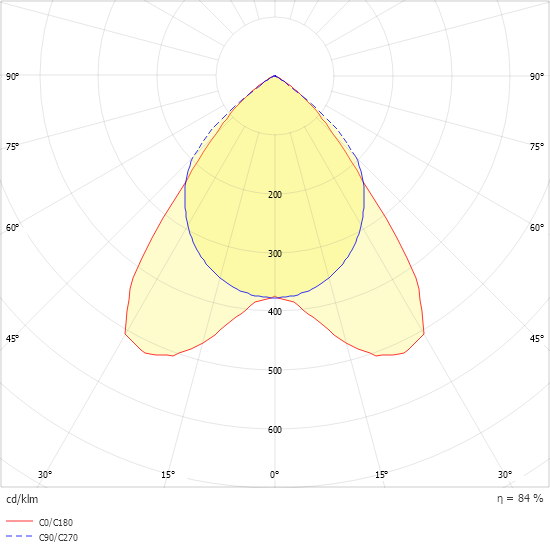

Light distribution curve
