IRL-T16-R1X145/45ND-W / 0950084
Product Description
Tubular luminaire from the IRL product family. Optical control via Clear cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 5480 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, protection rating IP66 IP68 IP69K. Luminaire suitable for surface mounting on ceiling/wall or pendant mounting with corresponding accessories (to be ordered separately). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0950084 |
| GTIN | 4029299503678 |
General
| Product category | Tubular luminaire |
| Range of application | Industry | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1790 mm |
| Dimension B | 91 mm |
| Dimension H | 91 mm |
| Net weight | 2.500 kg |
Mounting
| Mounting type | Attachment |
Housing
| Colour | white |
| Protection class | IP66 | IP68 | IP69K |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PC clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Clear cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 5480 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center
Approvals:
| Item number - Designation | Produktbeschreibung | Download | Wishlist |
0208520 -
IRL-DB P14
|
Spring steel clip, wall/ceiling fixture. IRL, white 2 pc. |
|
|
|
0208520SI -
IRL-DB P14-SI
|
Spring steel clip, wall/ceiling fixture. IRL, silver, 2 pc. |
|
|
|
0208520AQ -
IRL-DB P14-AQ
|
Spring steel clip, wall/ceiling fixture. IRL, black 2 pc. |
|
|
0207880 -
ZSP-SK-3M
|
Wire pendant loop clamp, D = 2 mm, L = 3m, 1 piece, maximum 45 kg |
|
|
0208394 -
IRL-DB
|
Wall / ceiling fixing IRL, pipe clip 1 set = 2 pc. |
|
|
Tubular luminaire from the IRL product family. Optical control via Clear cover, beam pattern symmetric, extremely wide beam, light emission direct. Lamps R-TUBE not included, Exchange by end customer possible. The luminaire generates a rated luminous flux of 5480 lm in light colour 840, adjustable luminous flux: No. The long LED service life enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Housing made of Plastic, white, protection rating IP66 IP68 IP69K. Luminaire suitable for surface mounting on ceiling/wall or pendant mounting with corresponding accessories (to be ordered separately). With electronic electrical component On/Off. Replacement by specialist. Rated voltage 230 - 240 V AC/DC 50 - 60 Hz.
Note on “Food Hygiene Act”: These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires. These are suitable for use in the food industry. A possible restriction of the area of application in the food industry can be found in the food certificate.
The light source is not included in the scope of delivery and must be ordered separately. Suitable light sources can be found in the light source overview.
Order Information
| Item number | 0950084 |
| GTIN | 4029299503678 |
General
| Product category | Tubular luminaire |
| Range of application | Industry | Food |
| HACCP certified | Yes |
Dimensions
| Dimension L | 1790 mm |
| Dimension B | 91 mm |
| Dimension H | 91 mm |
| Net weight | 2.500 kg |
Mounting
| Mounting type | Attachment |
Housing
| Colour | white |
| Protection class | IP66 | IP68 | IP69K |
| Impact resistance | IK08 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -25–25 °C |
| Housing material | Plastic |
| Cover material | PC clear |
Electrical version
| Type of control | On/Off |
| Nominal voltage | 230–240 V, 0/50–60 Hz |
| Rated power | 48.0 W |
| Protection class | I |
Lighting technology
| Light distributor | Clear cover |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | extremely wide beam |
| UGR class | ≤ 25 |
| Rated luminous flux | 5480 lm |
| Luminaire efficiency | 114 lm/W |
Light source
| Lamp | R-TUBE |
| Lamp included | No |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 4000 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Rated life L80B50 (tq = 25 °C) | 50.000 h |
Download Center

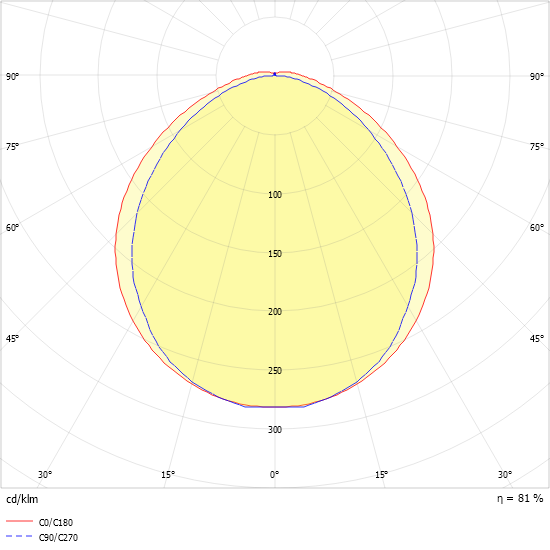

Light distribution curve
