VL2S-GLS150-7DASI865TB0400 / 2560409SI
Product Description
Gear tray VL2S-GLS PROTECTED from the RIDI LINIA EVO product family. Optical control by Lens from PMMA structured, beam pattern symmetric, deep-wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3930 lm in light colour 865. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, silver, similar to RAL 9006, protection rating IP54, permissible ambient temperatures -20 - 40 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound RIDI LINIA EVO trunking system. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales and storage areas for unpackaged food.
Order Information
| Item number | 2560409SI |
| GTIN | 4029299972184 |
General
| Product category | Gear tray |
| Range of application | Industry | Food | Logistics |
| Range of application HACCP | Unpackaged food |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 64 mm |
| Net weight | 1.700 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | silver, similar to RAL 9006 |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Steel |
| Surface treatment of housing | varnished |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 22.0 W |
| Faktor Verlustleistung Betriebsgerät | keine R-TUBE |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | deep-wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3930 lm |
| Luminaire efficiency | 179 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Gear tray VL2S-GLS PROTECTED from the RIDI LINIA EVO product family. Optical control by Lens from PMMA structured, beam pattern symmetric, deep-wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3930 lm in light colour 865. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, silver, similar to RAL 9006, protection rating IP54, permissible ambient temperatures -20 - 40 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound RIDI LINIA EVO trunking system. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales and storage areas for unpackaged food.
Order Information
| Item number | 2560409SI |
| GTIN | 4029299972184 |
General
| Product category | Gear tray |
| Range of application | Industry | Food | Logistics |
| Range of application HACCP | Unpackaged food |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 64 mm |
| Net weight | 1.700 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | silver, similar to RAL 9006 |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Steel |
| Surface treatment of housing | varnished |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 22.0 W |
| Faktor Verlustleistung Betriebsgerät | keine R-TUBE |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | deep-wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3930 lm |
| Luminaire efficiency | 179 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

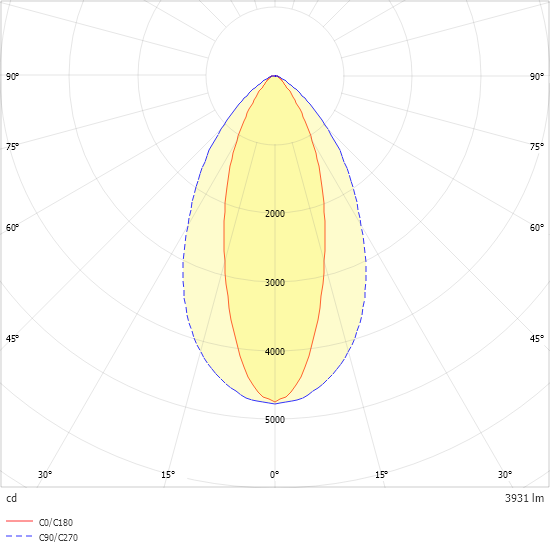

Light distribution curve
