VL2S-GLS150-7DAWS865TB0400 / 2560409
Product Description
Gear tray VL2S-GLS PROTECTED from the RIDI LINIA EVO product family. Optical control by Lens from PMMA structured, beam pattern symmetric, deep-wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3930 lm in light colour 865. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, traffic white, similar to RAL 9016, protection rating IP54, permissible ambient temperatures -20 - 40 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound RIDI LINIA EVO trunking system. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales and storage areas for unpackaged food.
They are suitable for use in food production areas without the use of high-pressure cleaners.
Order Information
| Item number | 2560409 |
| GTIN | 4029299971613 |
General
| Product category | Gear tray |
| Range of application | Industry | Food | Logistics |
| Range of application HACCP | Production | Unpackaged food |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 64 mm |
| Net weight | 1.700 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Steel |
| Surface treatment of housing | varnished |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 22.0 W |
| Faktor Verlustleistung Betriebsgerät | keine R-TUBE |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | deep-wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3930 lm |
| Luminaire efficiency | 179 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Farbwiedergabeindex R9 | 0 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center
Approvals:
Please select an application area or adjust the parameters individually needs.
Office | Classroom
500 lx / 0,75 m
Recreational areas
200 lx / 0,75 m
Hallway
100 lx / 0,00 m
Gym | Competition
500 lx / 0,00 m
Production | Assembly
500 lx / 0,85 m
Warehouse
200 lx / 0,00 mOffice | Classroom
Gear tray VL2S-GLS PROTECTED from the RIDI LINIA EVO product family. Optical control by Lens from PMMA structured, beam pattern symmetric, deep-wide beam, light emission direct. Lamps LED-M installed, Replacement by specialist possible. The luminaire generates a rated luminous flux of 3930 lm in light colour 865. The long LED service life of up to 100.000 h enables long use with consistent lighting quality. High quality of light thanks to a standard colour tolerance of < 3 SDCM. Steel, traffic white, similar to RAL 9016, protection rating IP54, permissible ambient temperatures -20 - 40 °C. Mounting: Simple clipping in for electrical contacting and mechanical fastening in the system-bound RIDI LINIA EVO trunking system. With electronic electrical component DALI-2. Replacement by specialist possible. Nominal voltage 220 - 240 V AC/DC 50 - 60 Hz.
These luminaires comply with the stipulations of the Food Hygiene Act as defined by Regulation (EC) No. 852/2004 (HACCP) Annex II Chapter I section 2 a, b, Chapter II section 1c relating to luminaires.
They are suitable for use in sales and storage areas for unpackaged food.
They are suitable for use in food production areas without the use of high-pressure cleaners.
Order Information
| Item number | 2560409 |
| GTIN | 4029299971613 |
General
| Product category | Gear tray |
| Range of application | Industry | Food | Logistics |
| Range of application HACCP | Production | Unpackaged food |
| Guarantee | 5 years |
Dimensions
| Dimension L | 1500 mm |
| Dimension B | 67 mm |
| Dimension H | 64 mm |
| Net weight | 1.700 kg |
Mounting
| Mounting type | Power rail |
| Mounting position | Trunking |
| Connection type | Power rail adapter |
| Number of poles | 7 |
| Conductor cross-section | 1.5–2.5 mm² |
| Adjustability | static |
Housing
| Colour | traffic white, similar to RAL 9016 |
| Protection class | IP54 |
| Impact resistance | IK03 |
| Glow-wire test | 650 °C |
| Permissible ambient temperature | -20–40 °C |
| Housing material | Steel |
| Surface treatment of housing | varnished |
| Cover material | PMMA structured |
Electrical version
| Type of control | DALI-2 |
| Nominal voltage | 220–240 V, 0/50–60 Hz |
| Rated power | 22.0 W |
| Faktor Verlustleistung Betriebsgerät | keine R-TUBE |
| Protection class | I |
Lighting technology
| Light distributor | Lens |
| Light emission | direct |
| Light distribution | symmetric |
| Beam characteristics | deep-wide beam |
| UGR class | ≤ 19 |
| Rated luminous flux | 3930 lm |
| Luminaire efficiency | 179 lm/W |
Light source
| Lamp | LED-M |
| Lamp included | Yes |
| Colour rendering index Ra | ≥ 80 |
| Colour temperature | 6500 K |
| Colour location tolerance (SDCM) | < 3 SDCM |
| Photobiological safety | RG1 |
| Rated life L80B50 (tq = 25 °C) | 100.000 h |
| Rated life L80B10 (tq = 25 °C) | 100.000 h |
Download Center

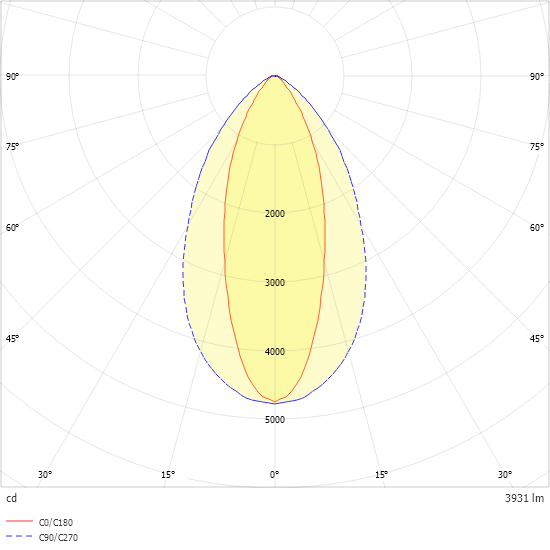

Light distribution curve
